TH350/SCOUT DANA 20 T/C 23 SPL

SKU: 50-3102
$633.42
excluding shipping
GM TH350 3 speed, 2wd automatic transmission to the Scout Dana 20 transfer case (with 23 spline drive gear) adapter kit.
+ -

Advance Adapter

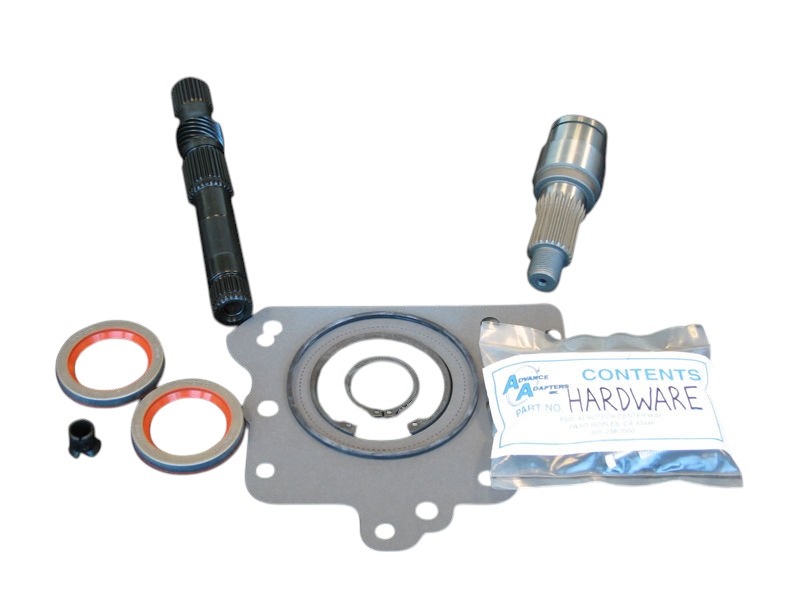

The GM TH350 adapter to the Scout transfer case is a short 1.850". And the overall length of transmission and adapter is 23.35". The adapter material is 356 T-6 heat treated aluminum alloy and the adapter has a provision for a transmission. The adapter kit includes a adapter housing, new 4wd TH350 output shaft, 23 spline spud shaft, nylon bushing, bearing, snap ring, o-ring, seal, gasket, fastening hardware and adapter instruction.

Note: The 4WD TH350 stock output shafts are getting hard to come by, which has increased their price. Unfortunately, we have had to adjust the kit pricing. Check with your local transmission shop to see if they have a shaft in stock for less than $120.00. If so, you can order this kit minus the output shaft. P/N 50-3103

Transfer Case

This adapter assembly will fit any Scout 20 & 300 with a 23 tooth female drive gear. The transfer case index to the new adapter will require an index retainer & sealed bearing. Please I.D. the transfer case bore size (3-1/8") small hole or (4") large hole for proper retainer. Additional information can be obtained in our on-line catalog, Jeep & Scout Vehicle Section: Transfer Case Information, Jeeps 1941-79.

Transmission

This adapter kit is designed for exclusive use with the 2wd GM TH350 automatic transmission. This GM automatic was commonly found stock in vehicles from 1969-81. It was used in both pickups and car applications. On 2wd transmissions, GM used three different tailhousing lengths. These lengths of the tailhousing are 6", 9", and 12". The output shaft length corresponds with these tailhousing lengths.

Bill Of Materials

Products specifications
Transmissions GM TH350 Automatic 2 Wheel Drive GM 1972-1984
Transfer Cases IH Scout Dana Spicer 300 (TC-146) - (23 Spline Input)
*
*
*
