Advance Adapter

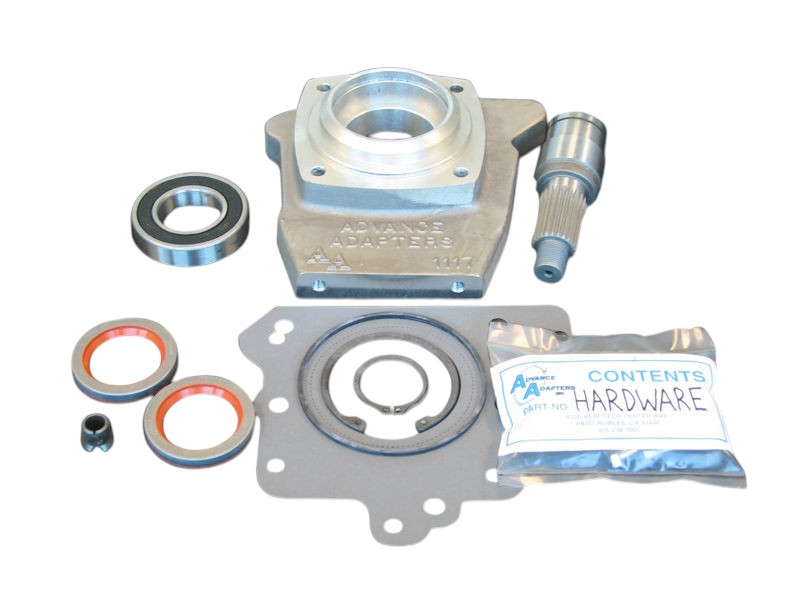

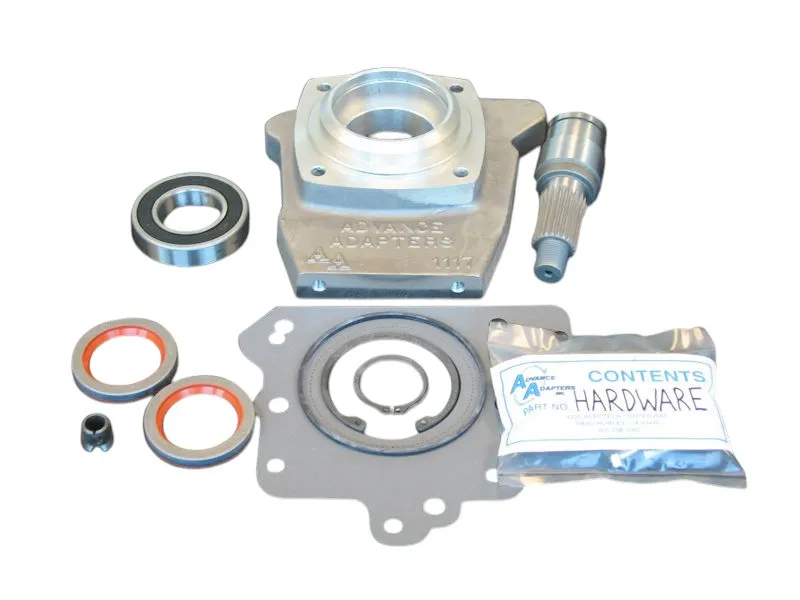

The GM TH350 adapter to the Scout transfer case is a short 1.850". And the overall length of transmission and adapter is 23.35". The adapter material is 356 T-6 heat treated aluminum alloy and the adapter has a provision for a transmission. The adapter kit includes a adapter housing, new 23 spline spud shaft, nylon bushing, bearing, snap ring, o-ring, seal, gasket, fastening hardware and adapter instruction.
Transfer Case
This adapter assembly will fit any Scout Dana 20 & 300 with a 23 tooth female drive gear. The transfer case index to the new adapter will require an index retainer & sealed bearing. Please I.D. the transfer case bore size (3-1/8") small hole or (4") large hole for proper retainer. Additional information can be obtained in our on-line catalog, Jeep & Scout Vehicle Section: Transfer Case Information, Jeeps 1941-79.
Transmission
This adapter kit is designed for exclusive use with the 4wd GM TH350 automatic transmission. This GM automatic was commonly found stock in vehicles from 1969-81. The Turbo Hydramatic 350 three speeds automatic is one of the most transmissions available in GM 4x4 trucks. The stock 4wd output shaft protrudes from the back of the case approx 1". 1980-81 model TH350 4wd output protrudes out 2.750". And this TH350 also uses a lock-up torque convert, and was always used with an aluminum transfer case. We r
Bill Of Materials
Products specifications
|
Transfer Cases
|
IH Scout Dana Spicer 300 (TC-146) - (23 Spline Input) |
|
Transmissions
|
GM TH350 Automatic 4 Wheel Drive GM 1972-1984 |
