4L60E HEX PATTERN TO ATLAS ADAPTER

SKU: AS-9300

Be the first to review this product

Price: $551.25

excluding shipping

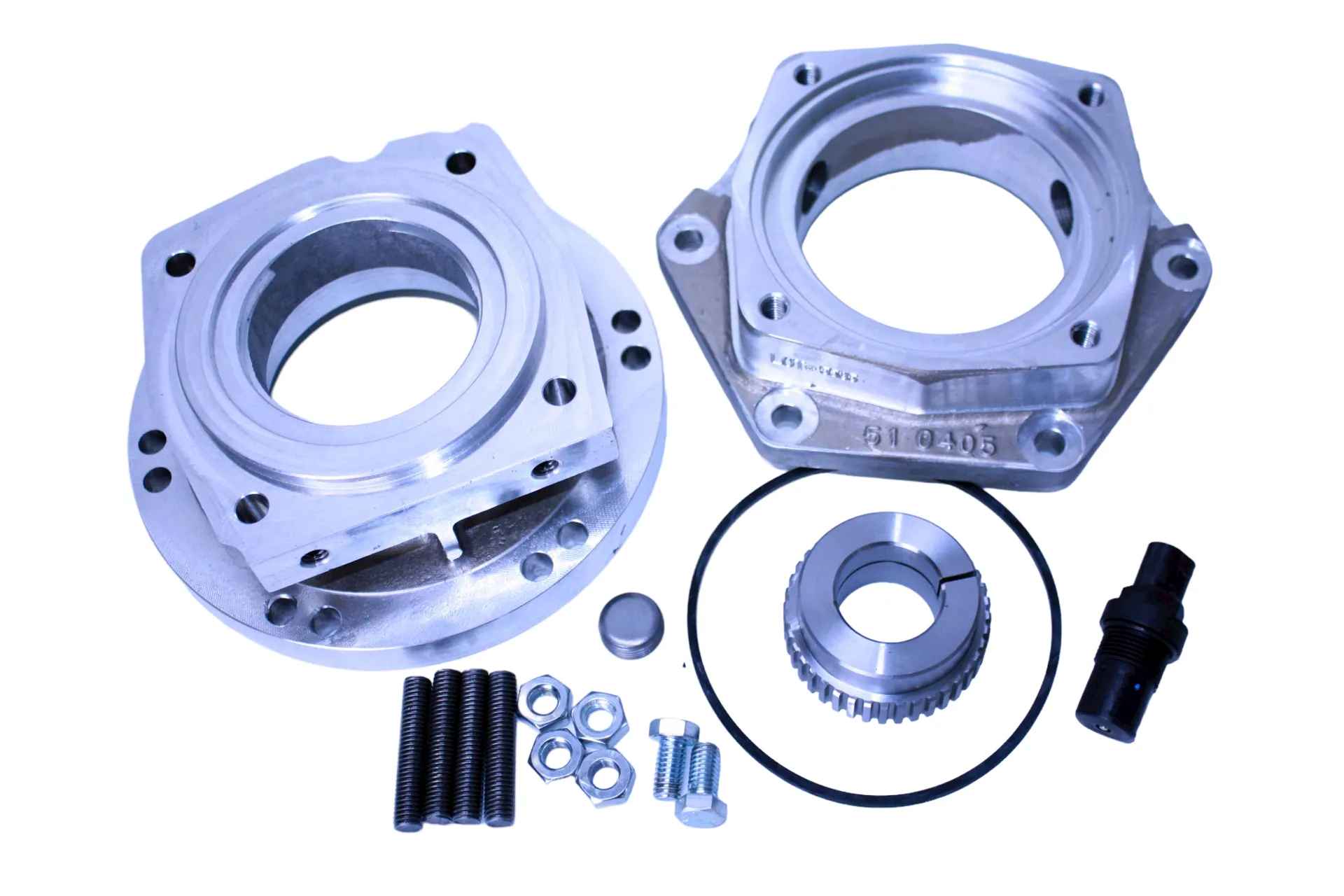

4L60E HEX PATTERN TO ATLAS ADAPTER KIT

Availability:

Qty:

i h

In 1996, GM produced a newer version of its electronically controlled 4L60E. This 4L60E transmission is 21-1/2" long, and has a removable bellhousing. It has a hex bolt pattern on the output side of the transmission, similar to a TH400. We adapt the 4L60E to the Atlas using two adapters, one that picks up the VSS tone for the GM transmission and the second that couples to the Atlas transfer case. This kit is designed for the 4WD version of the 4L60E transmission.

Bill Of Materials

Products specifications

Transfer Cases	Advance Adapters Atlas 2 Speed Articles: 1. Atlas Transfer Case - 2 Speed Units 3. Atlas T/C - Gear Ratio Options 5. Atlas T/C - Rotation & Clocking Options 6. Atlas T/C Tailhousing Options 7. Atlas T/C - Yoke Options 8. Atlas T/C- Speedometer Options 9. Atlas T/C - Low Range Switching 10. Atlas T/C shifters B. Atlas T/C - History, Updates to the Atlas over the Years & FAQ C. Atlas Transfer Case - Shifting & Operation G. Atlas General Maintenance Information
Transfer Cases	Advance Adapters Atlas 4 Speed Articles: 2. Atlas Transfer Case - 4 Speed Units 3. Atlas T/C - Gear Ratio Options 5. Atlas T/C - Rotation & Clocking Options 6. Atlas T/C Tailhousing Options 7. Atlas T/C - Yoke Options 8. Atlas T/C- Speedometer Options 9. Atlas T/C - Low Range Switching B. Atlas T/C - History, Updates to the Atlas over the Years & FAQ C. Atlas Transfer Case - Shifting & Operation G. Atlas General Maintenance Information
Transmissions	GM 4L60E (M30) Automatic 2 Wheel Drive GM 1996-2006 Articles: 4. GM 4L60E
Transmissions	GM 4L60E (M30) Automatic 4 Wheel Drive GM 1996-2006 Articles: 4. GM 4L60E
Transmissions	GM 4L60E Automatic 2 Wheel Drive GM 1993-1996 Articles: 4. GM 4L60E
Transmissions	GM 4L60E Automatic 4 Wheel Drive GM 1993-1996 Articles: 4. GM 4L60E
Transmissions	GM 4L65E/4L70 (M32) Automatic 2 Wheel Drive GM 2001-2006 Articles: 4. GM 4L60E
Transmissions	GM 4L65E/4L70(M32) Automatic 4 Wheel Drive GM 2001-2006 Articles: 4. GM 4L60E
