TJ V8 WITH AX15 TRANS LS GEN III/IV

Jeep TJ Wrangler 1997-2004 Chevy V8 Conversion Packages

*These packages are only designed for the LS, GEN 3 & GEN 4 GM Engines.

The installation of the bellhousings in these kits will require the transmission to be moved forward 2” to 2.5” so drive shaft modifications, 1” body lift, and 4" suspension lift required.

 Vehicles Equipped with Asin AX15 Five Speed Transmissions

•  For use with stock Asin AX15 5 speed transmission. This transmission option was available from 1997-1999 and was mated to the stock 4.0L high output inline 6 cylinder engine. The Asin AX15 is considered a very good conversion worthy transmission with the ability to hold up against moderate horse power and tire size. Please note that this conversion package is only compatible with Chevy LS, GEN III/IV engines. Please click on the part numbers below for a more in depth look at the kit components individually.

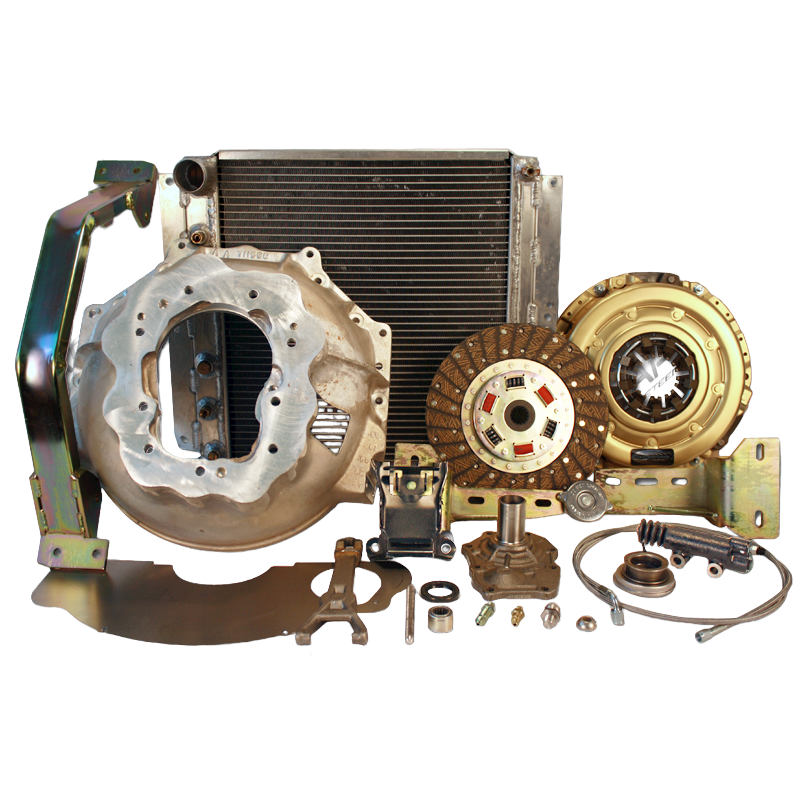

Kit Includes:

1.  PN712567V - Bellhousing Adapter Kit
2.  PN713093 - Engine Mount System
3.  PN713093P - TJ Steering pivot brkt
4.  PN715542 - TJ Transfer case shifter brkt
5.  PN716130TJ - Hydraulic Fitting
6.  PN716130-60 - 60" Stainless Steel Braided Hydraulic Hose
7.  PN716693-LS - Aluminum High Flow Radiator
8.  PN716679 - 22LB. Radiator Cap
9.  PN716213 - Slave Cylinder
10.  PN712500M - GEN-3 MANUAL TRANS KIT
11.  PN22-0002 - STARTER- HI-TORQUE CHEVY LS GEN III

Bill Of Materials

• STARTER- HI-TORQUE CHEVY LS GENIII / 22-0002
• GEN-3 VORTEC MANUAL TRANS KIT LUK CLUTCH / 712500M
• JEEP AX15/GM 168T FLYWHEEL / 712567V
• VORTEC Gen3 W/AC /TJ ENGINE MOTOR MOUNT / 713093
• TJ Steering Bracket Votec Replacing a 6 Cyl. / 713093P
• TJ TRANSFER CASE SHIFT BRKT / 715542
• HOSE-60 STAINLESS -3 FITTING / 716130-60
• FITTING JEEP TJ MASTER CYL. / 716130TJ
• SLAVE CYLINDER-TLC / 716213
• 22lbs RADIATOR PRESSURE CAP / 716679
• 1987-06 JEEP TO GM LS1 MANUAL / 716693-LS
