HOSE-60 STAINLESS -3 FITTING

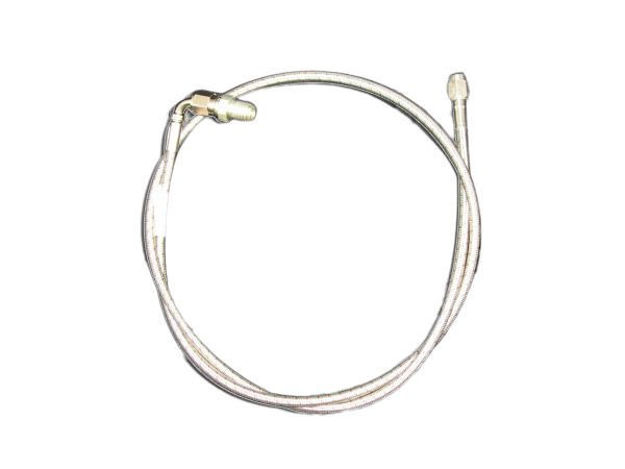

Advance Adapters -3 AN(3/8-24) Teflon(PTFE) core stainless steel braided hose assembly. Overall length is 60", with crimped swivel hose ends. The hose ends are 90° female x straight female.

Note: Hose does not include fittings. Required fittings are sold separately.

The fittings listed below can be used in combination, in order to properly couple a slave cylinder & master cylinder together.

• PN716130: -3 AN male x Jeep YJ O-ring/roll pin fitting type
• PN716130TJ: -3 AN male x Jeep TJ O-ring/roll pin fitting type
• PN716215: -3 AN male x M10x1.0 male (Used for Toyota FJ40 slave cylinders)
• PN716130F: -3 AN male x 7/16-24 male inverted flare

Jeeps 1987-2006 (Hydraulic linkage) - These year series Jeeps all had hydraulic linkages and use both internal and external release mechanisms. When installing a new engine and retaining the stock 5 speed transmission, we normally use an external slave cylinder - except on Peugeot 5 speeds where the stock internal slave cylinder must be retained. The external slave cylinder for AX5, AX15 & NV3550 transmissions is found off of a 1975 Toyota Land Cruiser, P/N 716213. The bellhousing kits for the AX5, AX15 & NV3550 includes a slave cylinder fitting to adapt this slave cylinder to a #3 or AN3 37 degree fitting, which is the same size fitting that Jeep used on the master cylinder. P/N 716130-60 can be used to couple the slave cylinder & master cylinder together.
