VORTEC Gen3 W/AC /TJ ENGINE MOTOR MOUNT

Advance Adapter

This weld-in, engine mount kit is designed for exclusive use in the 1997-2006 Jeep TJ Wranglers. It is used to install a Gen III / LS-Series and TH350 / 700R / 4L60 / 4L60E at the same time.

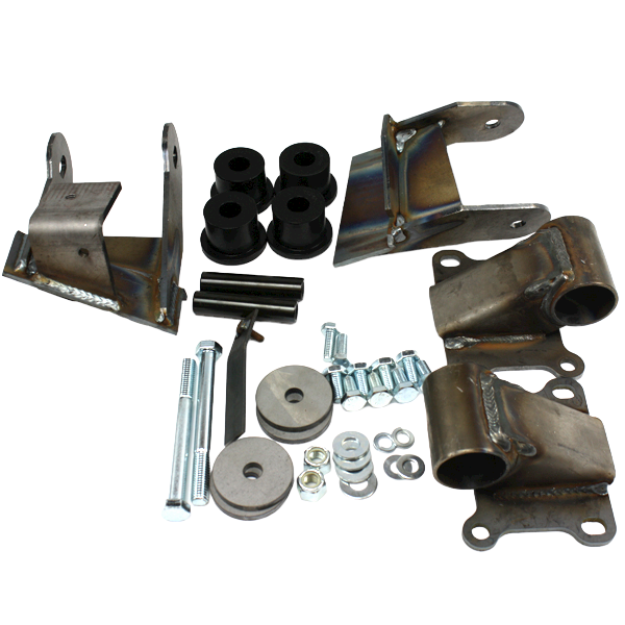

The weld-in engine mount kit includes our weld-in frame perches, new polyurethane bushings for engine to frame isolation, fastening hardware and engine mount instructions.

Note: When retaining the stock AX15 / NV3550 transmission, the AX15 / NV3550 must be moved forward to couple to the engine.

Note: This part number (713093) covers the install with LS-series engines with A/C.

Frame modifications required.

This motor mount is designed to work with a 1997-2006 4 cylinder steering bracket, Part# 52058855AB (now discontinued from Jeep). If your replacing a 6 cylinder, you will need this steering bracket. We make this part under PN713093P.

Bill Of Materials

• MOUNT- GEN 3 V8 TO TJ FRAME / 713092R
• MOUNT- GEN 3 V8 TO TJ ENGINE / 713092M
• H.H.C.S. 10mm X 1.5TH X 20mm GRD10.9 zinc / 720044
• SPACER- GM GEN-3 MOTOR MOUNT / 713092S
• GEN 3 MOTOR MOUNT BUSHING / 713092B
• SLEEVE / 713092A
• MOUNT- GEN 3 V8 TO TJ FRAME / 713092L
• GEN 3 MOTOR MOUNT FRAME FIXTUR / 713092C
• LOCK WASHER 3/8 ZINC / 723704
• NYLON LOCK NUT 1/2 -13 PLATED zinc / 725005
• H.H.C.S. 1/2 -13 X 5.0 gr. 5 zinc / 725027
• H.H.C.S. 3/8 -16 X 1 PLATE GR5 / 723721
• WASHER 3/8 SAE FLAT PLT / 723735
• FLAT WASHER 1/2 PLATED-SAE ZINC / 725003
