TJ V8 WITH NV3550 TRANS LS GEN III/IV

Jeep TJ Wrangler 1997-2004 Chevy V8 Conversion Packages

*These packages are only designed for the LS, GEN 3 & GEN 4 GM Engines.

The installation of the bellhousings in these kits will require the transmission to be moved forward 2” to 2.5” so drive shaft modifications, 1” body lift, and 4" suspension lift required.

Vehicles Equipped with NV3550 Five Speed Transmissions

•  For use with stock NV3550 5 speed transmission. This transmission option was available from 2000-2004 and was always mated to the stock 4.0L High Output inline 6 cylinder engine. The NV3550 is considered a very adequate transmission and has been a popular choice for conversions with higher horse power and larger tires. Please note that this conversion package is only compatible with Chevy LS,GEN III/IV engines. Please click on the part numbers below for a more in depth look at the kit components individually.

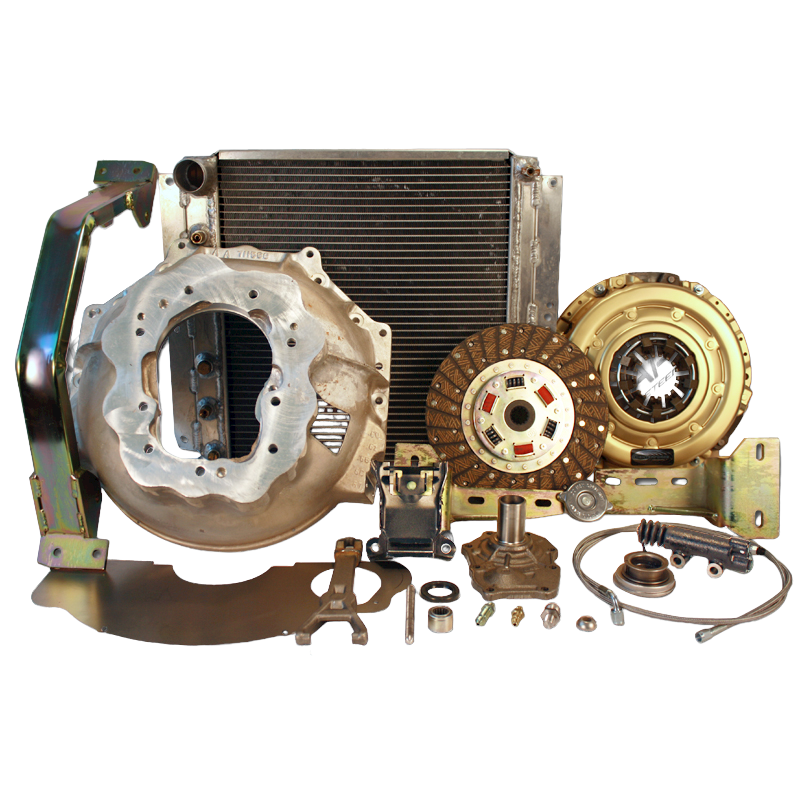

Kit Includes:

1.  PN712591V - Bellhousing Adapter Kit
2.  PN713093 - Engine Mount System
3.  PN713093P - TJ Steering pivot brkt
4.  PN715542 - TJ Transfer case shifter brkt
5.  PN716130TJ - Hydraulic Fitting
6.  PN712500M - GEN-3 MANUAL TRANS KIT
7.  PN716693-LS -  Aluminum High Flow Radiator
8.  PN716679 -  22LB. Radiator Cap
9.  PN716213 -  Slave Cylinder
10.  PN716130-60 - 60" Stainless Steel Braided Hydraulic Hose
11.  PN22-0002 - STARTER- HI-TORQUE CHEVY LS GEN III

Bill Of Materials

• STARTER- HI-TORQUE CHEVY LS GENIII / 22-0002
• GEN-3 VORTEC MANUAL TRANS KIT LUK CLUTCH / 712500M
• JEEP NV3550 TO CHEVY 168T / 712591V
• VORTEC Gen3 W/AC /TJ ENGINE MOTOR MOUNT / 713093
• TJ Steering Bracket Votec Replacing a 6 Cyl. / 713093P
• TJ TRANSFER CASE SHIFT BRKT / 715542
• HOSE-60 STAINLESS -3 FITTING / 716130-60
• FITTING JEEP TJ MASTER CYL. / 716130TJ
• SLAVE CYLINDER-TLC / 716213
• 22lbs RADIATOR PRESSURE CAP / 716679
• 1987-06 JEEP TO GM LS1 MANUAL / 716693-LS
