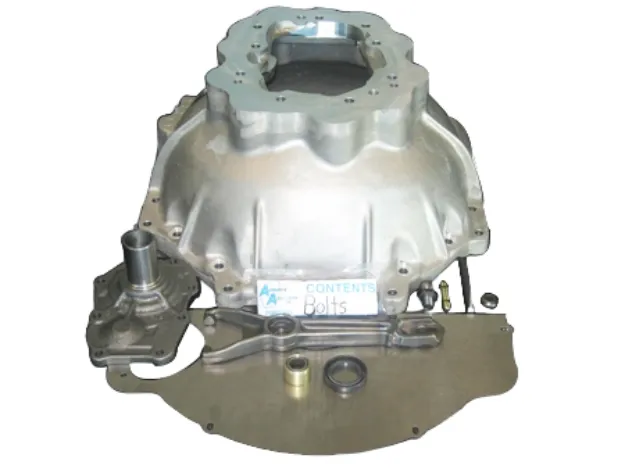

This adapter bellhousing assembly is used to adapt the GM 4.3, 350 to the Jeep AX5, 5 speed manual transmissions. The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, pilot bushing, AX5 bearing retainer assembly, seal, throw-out arm, slave cylinder push rod, slave cylinder push rod end, ball pivot, fastening hardware, and adapter instructions.
Note: When using a 168th flywheel on your GM engine a gear reduction starter is required. We offer gear reduction starts (p/n 22-0001 & 22-0003). Late model GM 4.3 V6 with an aluminum oil pan must use starter 22-0001.
Note: This kit is not intended to use with any LS engine.
Transmission
The AX5 was used in 1985-2002 model years. It has a overall length of 22.50". The output shaft is a 21 spline count with a flush stickout up to 1996 models years. And switch to a .500" stickout past the tailhousing in 1997 & newer Jeeps.
Required Clutch Options
P/N 716213 Slave Cylinder
P/N 716130-60 Hose assembly from master to slave cylinder
P/N N1430 Throw-Out Bearing
P/N 716104 10.5" Clutch Disc
P/N CF165552 11" Pressure Plate
Bill Of Materials
712565V
