TOYOTA FJ CRUISER, TACOMA, (MAN) /ATLAS

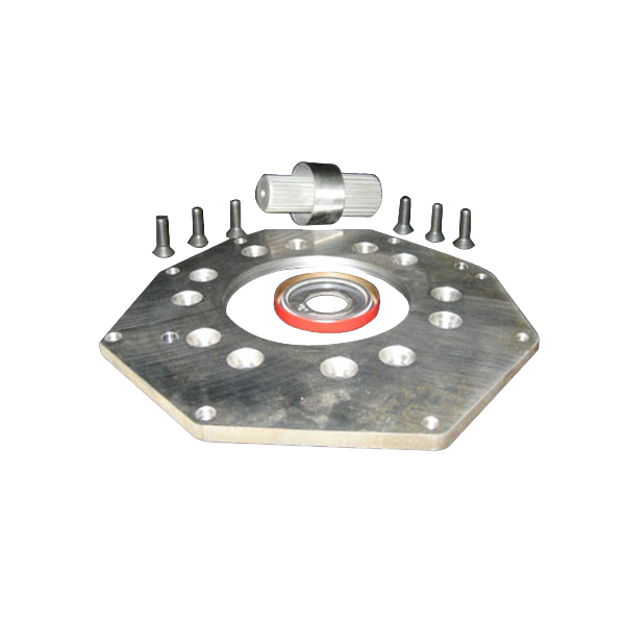

*TOYOTA FJ CRUISER 2007 & UP, *Tacoma 6 speed 2005-15 2.7L 4 cyl. *TACOMA 2005 & UP w/ 4.0L & Manual to ATLAS T/C are an easy upgrade with this adapter to the Atlas transfer case. we knew it wouldn't be long before the requests came in for drivetrain swaps. Although it does require a bit of modifying, the option of both the Atlas 2 and 4 speed transfer case is now available to fit to the stock automatic transmission. This kit comes with an adapter plate and spud shaft. The shaft allows the transmission to bolt up to the Atlas 23 spline transfer case. We recommend using a cable shifter due to the center console configuration in these vehicles.

The Atlas requires a standard 23 spline input on both the 2 & 4 speed t/c's.

Bill Of Materials

• SEAL-NATIONAL 473204/ (CR21061 is 0.5 wide) / 716755
• SHAFT- FJ CRUISER TO ATLAS 23SP / 52-5715
• SNAP RING / 716459
• BASE- TWIN STICK MOUNT 42RLE / 302051-RLE
• BLOCK- CABLE ADAPTER 42RLE ATLAS / 303318
• NUT- RETAINING CABLE 42RLE ATLAS / 303319
• ADAPTER- ATLAS TO TOYOTA / 51-5715
• COTTER PIN- 3/32 x 3/4" / 302455
• CLEVIS PIN- 1/4 x 1" / 302454
• F.H.S.C. 3/8 -16 X 1 / 723718
