JEEP ENG.BHSG X JEEP TRANS.

SKU: 712569
$440.37
excluding shipping
Jeep Wrangler 4.0L to Jeep CJ7 series transmission (T-4, T-5, T-150,T-176) adapter bellhousing kit.
Availability:
i h
Digital Downloads

Advance Adapter

This adapter bellhousing assembly is used to adapt the Jeep 4.0L to the Jeep series SR4, T-4, T-5, T-150 & T-176 transmissions. This kit is ideal when retro-fitting the Jeep 4.0L into a Jeep CJ series.

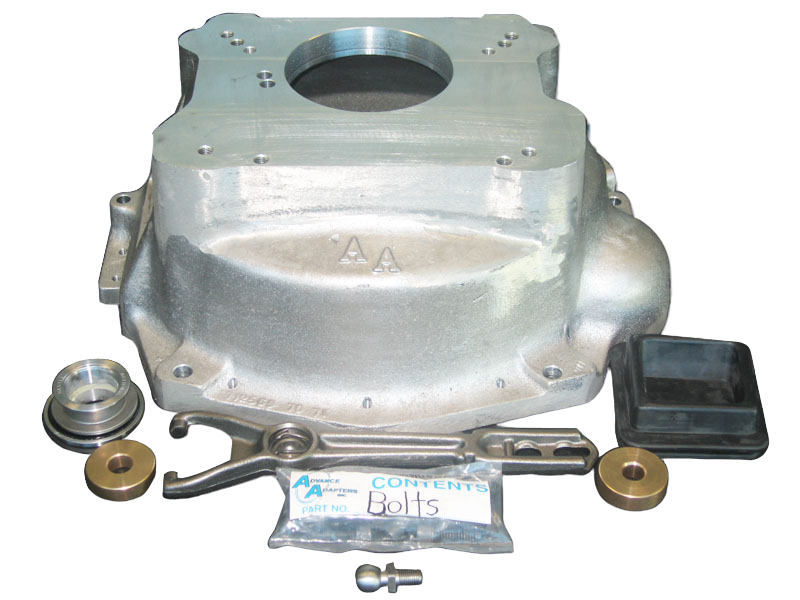

The bellhousing kit includes a 356 T-6 aluminum bellhousing, two pilot bushings with (.670" & .590") inside pilot diameter, clutch release bearing, throw-out (clutch release) arm, ball pivot, throw-out boot, fastening hardware, and adapter instructions.

Note: This bellhousing features two crankshaft positioning sensor locations for the 1987-2004 4.0L & 2005-06 4.0L engines.

Note: Ford 4 speed transmissions NP435, T18, & T19 can be used with this bellhousing.

Note: The AMC 258, 304, 360, and 401 engines can be used with this bellhousing.

Options

Don't forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!

Optional items:

P/N 716331 Slave cylinder

P/N 716130-60 slave cylinder hose

Bill Of Materials

Products specifications
Engine AMC 242 CID 4.0L Inline 6
Transmissions Borg Warner SR4 Manual 4 Wheel Drive Jeep 1980-1986
Transmissions Borg Warner T-150 Manual 4 Wheel Drive Jeep 1976-1979
Transmissions Tremec T-176 Manual 4 Wheel Drive Jeep 1980-1983
Transmissions Borg Warner T-4 Manual 4 Wheel Drive Jeep 1980-1986
Transmissions Borg Warner T-5 Manual 4 Wheel Drive Jeep 1980-1986
Transmissions Borg Warner T-18 Manual 4 Wheel Drive Jeep 1968-1979
Transmissions Borg Warner T-18 Manual 4 Wheel Drive Ford 1967-1984
*
*
*
