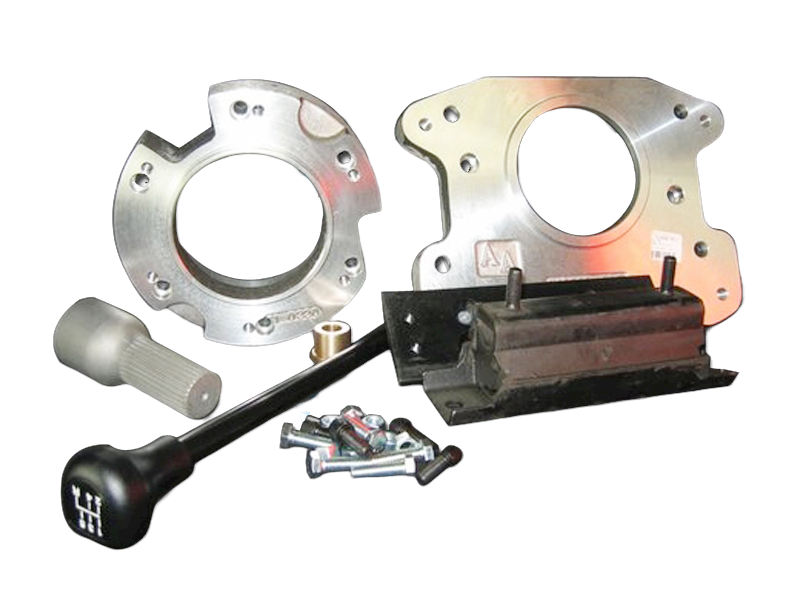

KIT CONSISTS OF:
No. Qty Part No. Description
1. 1 Kit 50-0220 4WD 29 SPLINE NV4500 TO FORD NP205 31T
2. 1 Kit 712551 DODGE NV4500 TO FORD V8 BHSG.
3. 1 Kit 716050D1 NV4500 SHIFT HANDLE ASSY.
4. 1 Kit 716101-2 CHEVY/NV4500 TRANS RUBBER MT.
Optional item:
CFMST735000 Centerforce Ford pressure plate with a GN 11" disc
INSTALLATION NOTES:
This kit is designed to fit the Dodge Standard Duty 29 spline NV4500 transmission.
This kit requires the use of a stock Ford bellhousing with a 4.848" index diameter.
Remove the stock tailhousing and install the new adapter housing provided in this kit. Refer to the 50-0207 Instruction Sheet.
Bill Of Materials
Products specifications
|
Transfer Cases
|
Ford New Process 208 (31 Spline Input) |
|
Engine
|
Ford 302 ,289 & 351W Small Block V8 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 2001-2005 |
|
Transfer Cases
|
Ford New Process 205 (31 Spline Input) |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 1999-2000 |
