Advance Adapter Note: When using the Ford NP205, we offer a NP205 transfer case shifter bracket. This bracket is sold separately.
The Dodge NV4500 4WD adapter to Ford NP205 / 208 is 1.625" in length.

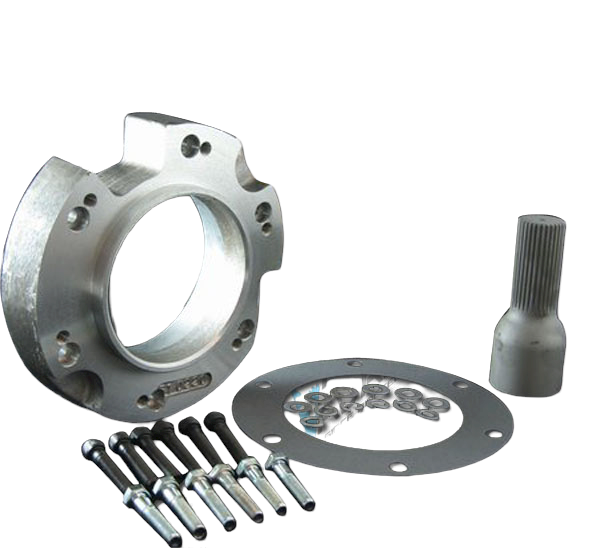

Adapter material is 356 T6 heat treated aluminum alloy. The adapter kit includes an adapter ring for the Ford transfer case, spud shaft with 31 spline x 29 internal spline, gasket, fastening hardware and adapter instructions.
Transfer Case
The Ford transfer cases NP205, NP208, and the various Borg Warner 1300 series are all basically treated the same when it comes to adapting to them. They all have a circular 6 bolt pattern, a 31 spline input, and same index diameter.
Transmission
The adapter kit is designed for exclusive use with a Dodge 4WD NV4500 transmission with a 29 spline output shaft. Shortening of the transmission output shaft is required.
Bill Of Materials
Products specifications
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge Heavy Duty (Diesel) 1999-2005 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge Heavy Duty (Diesel) 1993-1998 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 2001-2005 |
|
Transfer Cases
|
Ford New Process 205 (31 Spline Input) |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 1999-2000 |
