DODGE NV4500 23 SPL./TOY L.C. 10 SPL

Advance Adapter

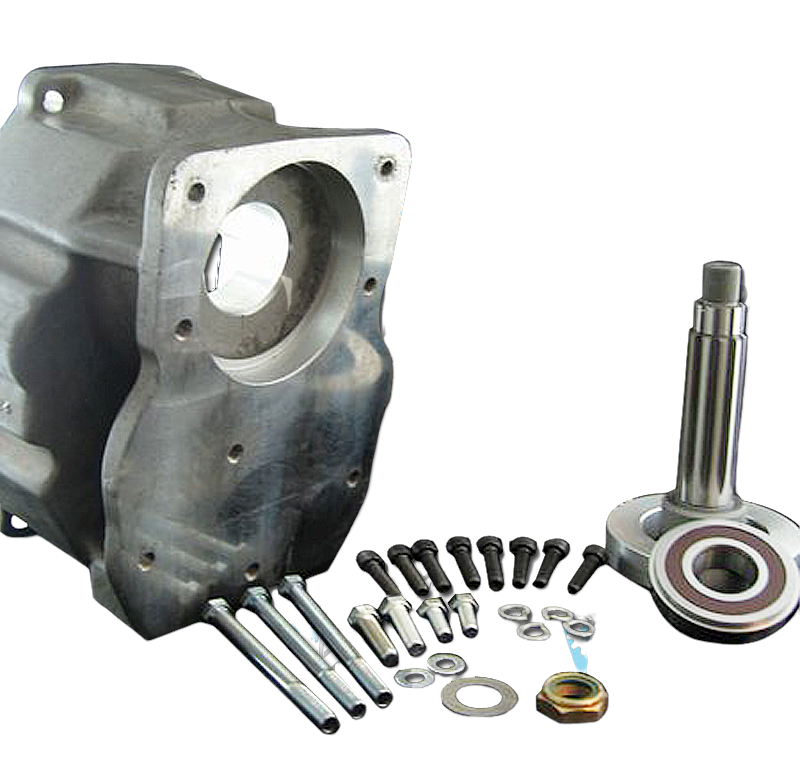

The Dodge NV4500 adapter to the Land Cruiser 10 spline transfer case is 6.375" in length. And the overall length of the transmission and adapter is 18.875". Adapter material is 356 T6 heat treated aluminum alloy. The adapter has a provision for our heavy duty transmission mount. The adapter kit includes adapter housing, 10 spline spud shaft w/ 23 spline internal, sealed bearing, set collar, gasket, nylon nut, fastening hardware, and adapter instructions.

Transfer Case

This adapter assembly fits 1963-73 10 spline transfer cases. The drive gear has 10 internal splines and a diameter of 1.375". There cases are equipped with a vacuum style shifter.

Bill Of Materials

• H.H.C.S. 7/16 -14 X 5 GRD 5 / 724345
• 7/16 -14 X 1-1/2 Grd 5 hhcs / 724349
• LOCK WASHER 7/16 STD PLTD / 724303
• HIGH COLLAR L/W 7/16 / 724324
• NUT-NYLON LOCK 7/8 -16 / 728701
• SPECIAL FLAT WASHER / 728702
• SMALL HOLE RETAINER 51-0224 / 716199
• BEARING SEALED 307 W/ SNAP RING/ LANDCRUISER / 716301
• HOUSING- NV4500 TO LAND CRUISER / 51-0224
• TOY LC 10SP.X NV 23TH INTERNAL / 52-0225
• WASHER 3/8 SAE FLAT PLT / 723735
• H.H.C.S. 3/8 -16 X 7/8 GRADE 5 zinc / 723739
• TOYOTA T.C. GASKET / 716507
• 10mm-1.5THR X 40mm S.H.C.S. black oxide / 720046
