DANA 300/AMC 6CYL B/H (D29)

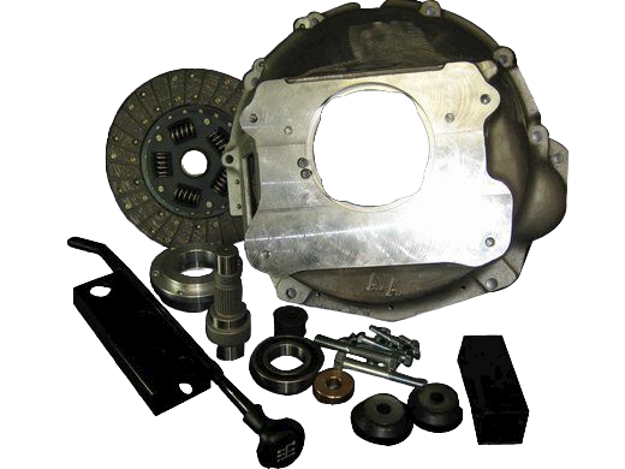

KIT CONSISTS OF:

1. 1 PNLC383271 10.5 CLUTCH DISC

2. 1 PN52-0229 29 SPLINE DANA 300 INPUT GEAR

3. 1 PN712568 DODGE NV4500 TO AMC ENGINE FULL BELLHOUSING

4. 1 PN716021 DANA 300 CROSSMEMBER MOUNT

5. 1 PN716048 DANA 300 CROSSMEMBER SPACER

6. 1 PN716050D1 NV4500 SHIFT HANDLE ASSY

7. 1 PN716221 DANA300/NV4500 RETAINER KIT

9. NV4500 OUTPUT SHAFT- Must be shortend

INSTALLATION NOTES:

The overall assembly length is 25.125”. These kits use an new custom bellhousing that bolts to the stock AMC engine. The original Jeep clutch linkage can be retained, since our bellhousing offers the same clutch linkage mounting holes as the stock bellhousing. Driveline modifications will be required with NV4500 transmission replacements. These kits are not compatible with short wheel-based vehicles such as the CJ5 models. For proper indexing, a new index Dana 300 retainer is provided in the kit. Some crossmember modifications are necessary, and a body lift is recommended.

This kit is designed to fit the 29 spline Dodge Standard Duty NV4500 transmission with a GM input shaft installed.

Bill Of Materials

• SHAFT- D300 INPUT 29T/NEW VENTURE / 52-0229
• NV4500 & TR-4050 GM TRANS/AMC ENG. / 712568
• DANA 300 CROSSMEMBER MOUNT / 716021
• DANA 300 CROSSMEMBER SPACER / 716048
• NV4500 DODGE 99UP HANDLE ASSY. / 716050D1
• DANA 300/NV4500 RETAINER KIT / 716221
• CLUTCH DISC-LUK CHEVY 10.5 1-1/8 10 SPLINE / LC383271
