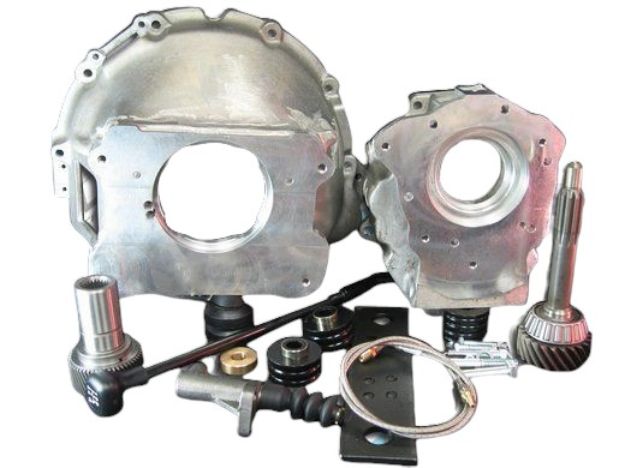

KIT CONSISTS OF:
No. Qty Part No. Description
- (1) Kit PN50-0204 NV4500 TO NP231 WRANGLER 29T KIT
- (1) Kit PN50-0231 29 SPLINE NP231 INPUT GEAR
- (1) Kit PN712568 NV4500-1996 GM TRANS/AMC ENGINE BHSG.
- (1) Kit PN716008 WRANGLER CROSSMEMBER MOUNT
- (1) Kit PN716050D1 NV4500 SHIFT HANDLE ASSY.
- (1) PN716130H SLAVE CYLINDER HOSE
- (1) PN716130F -3 MALE FITTING
- (1) Kit PN716331 *JEEP SLAVE CYL. KIT
INSTALLATION NOTES:
This kit is designed to fit the 29 spline Dodge Standard Duty NV4500 transmission.
The overall assembly length is 24.750”. The 4.2 Jeep 6 cylinder engine can be easily adapted to the NV4500 using our adapter bellhousing. The internal release bearing will be eliminated and a new external slave cylinder gets mounted on the outside of our bellhousing.
When coupled to the Peugeot, the stock transfer case used a 21 spline input gear. A new input gear must be installed to match the output spline of your transmission. NOTE: These new gears will only fit the NP231 transfer case; and the transfer case must be disassembled for installation of this input gear. The transfer case adapter is the shortest design possible to couple to the New Process transfer case. This adapter comes with a shifter bracket that allows the use of your stock transfer case shifter. These packaged kits include a new support crossmember which couples to the stock skid pan. Modifications will be required to your floorboard for the shifters, and the skid pan will require new holes to be drilled for our crossmember support. A body lift is normally recommended for clearance. Due to the different transfer case shift controls found on Jeep Cherokees, this kit should not be used with these vehicles.
Bill Of Materials
27-0012T
