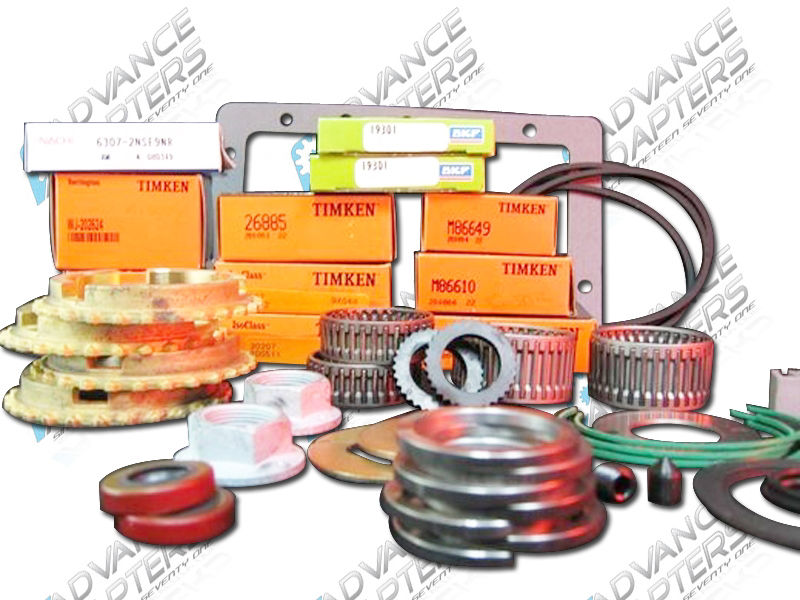

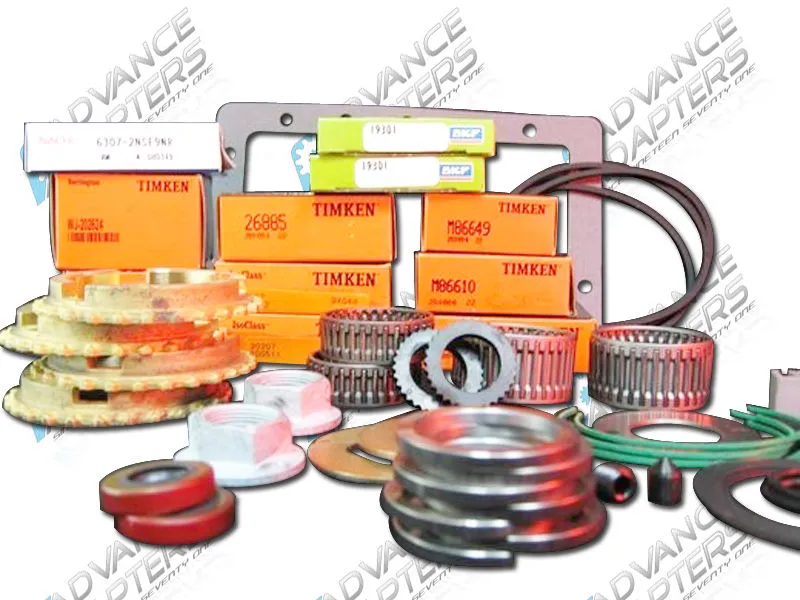

ATLAS 2SP REBUILD KIT 26 Spl, includes new 32 SPL front output

SKU: AB1001

Be the first to review this product

$783.68

excluding shipping

ATLAS 2SP REBUILD KIT 26 FRONT TO UPGRADE TO A NEW 32 SPLINE

Availability:

Qty:

i h

Digital Downloads

AB1000 AB1001

Overview
Reviews
Contact Us

ATLAS 2SP REBUILD KIT 26 FRONT TO UPGRADE TO A NEW 32 SPLINE

Atlas rebuild and service iformation:

D. Atlas Service Manual & Application Guide
E. Atlas Torque Specifications
F. Atlas Transfer Case - Upgrades & Rebuilds
G. Atlas General Maintenance Information
H. Atlas Rebuilds - Front Output Rebuild
I. Idler Gear rebuild
J. Input Shaft rebuild or change
K. Pan Assembly
L. Rear Output Rebuild
M. Shifter control rebuild
N. Shifter Forks

Bill Of Materials

NUT- 7/8 -20 FLANGE LOCKNUT ATLAS/SYE 32T / 300476
WASHER- ATLAS HIGH SPEED THRUST / 300393
SEAL-ATLAS SHIFT RAIL / 300387
O-RING-ATLAS 4.56 and 5.00" BORE / 300490
SEAL-INPUT SHAFT ATLAS / 300500
SEAL ATLAS INPUT SHAFT DUAL SPRING VITON / 300499
SET SCREW-ATLAS SHIFTER FORK / 300386
O-RING 121 - ATLAS 1 1/4" IDLER SHAFT (Also 716708) / 300358
THRUST WASHER - ATLAS 1 1/4" IDLER GEAR / 300355
BEARING TAPERED ROLLER 26885 CONE / 300314
SYNCHRO-ATLAS BRASS RING / 300370
PAD-ATLAS SHIFT FORK / 300383
SYNCHRO SPRING-ATLAS / 300373
WASHER- ATLAS FRONT OUTPUT LOW SPD GEAR / 300509
SNAP-RING EXT, INPUT-SHAFT GEAR / 716453
ATLAS PAN GASKET / 301400
WASHER- SEAL / 300919
SNAP RING / 716455
SHIM-FRONT INPUT 2 SIZES .006 .0045 / 300493
BEARING-CAGED NEEDLE SUPPORT / 300515
SHIMS-ATLAS BEARING CAP / 300105S
BEARING-ATLAS CAGED NEEDLE LOW SPD GEAR / 300518
BEARING RACE -ATLAS FRONT OUTPUT M86610 CUP / 300512
BEARING TAPERED-ATLAS FRONT OUTPUT M86649 CONE / 300511
BEARING-SINGLE ROW ATLAS FRONT INPUT SHAFT / 300510
BEARING-TAPERED SET X30207 CUP and Y30207 CONE / 300513
BEARING-ATLAS CAGED NEEDLE HIGH SPD GEAR / 300517
BEARING CAGED NEEDLE ATLAS 1 1/4" IDLER GEAR / 300516
BEARING TAPERED ROLLER 26822 CUP / 300514
COVER- ATLAS REAR BEARING / 300105
SHAFT- ATLAS FRONT OUTPUT w/ NEW YOKE FEATURE / 318123
BOLT-ATLAS CLUSTER SHAFT 12PT. 3/8 -16 X 1/2 / 300359
BOLT- 5/16 -18 x 3/4 H.F.C.S. NON SERRATED / 301403
BOLT 3/8 -16 X 1.25" SHCS ZNC / 723730
SHIM KIT 10 SHIMS .159 THUR .168 ** MOST POPULAR** / 300491-A
HOUSING- ATLAS FRONT OUTPUT BEARING / 300103
