TJ V8 WITH AX15 TRANS

Jeep TJ Wrangler 1997-2004 Chevy V8 Conversion Packages

Designed for the Gen 1 & Gen 2 GM Engines with the 153 tooth 12.75" Diameter Flywheel.

The installation of the bellhousings in these kits will require the transmission to be moved forward 2" to 2.5" so drive shaft modifications, 1" body lift, and 4" suspension lift required.

Vehicles Equipped with Asin AX15 Five Speed Transmissions

• For use with stock Asin AX15 5 speed transmissions. This transmission option was available from 1997-1999 and was mated to the stock 4.0L high output inline 6 cylinder engine. The Asin AX15 is considered a very good conversion worthy transmission with the ability to hold up against moderate horse power and tire size. Please note that this conversion package is only compatible with Chevy V8 or 4.3 V6 engines that are equipped or have the ability to be equipped with the 12.75" Diameter Chevrolet 153 tooth flywheel. Please click on the part numbers below for a more in depth look at the kit components individually

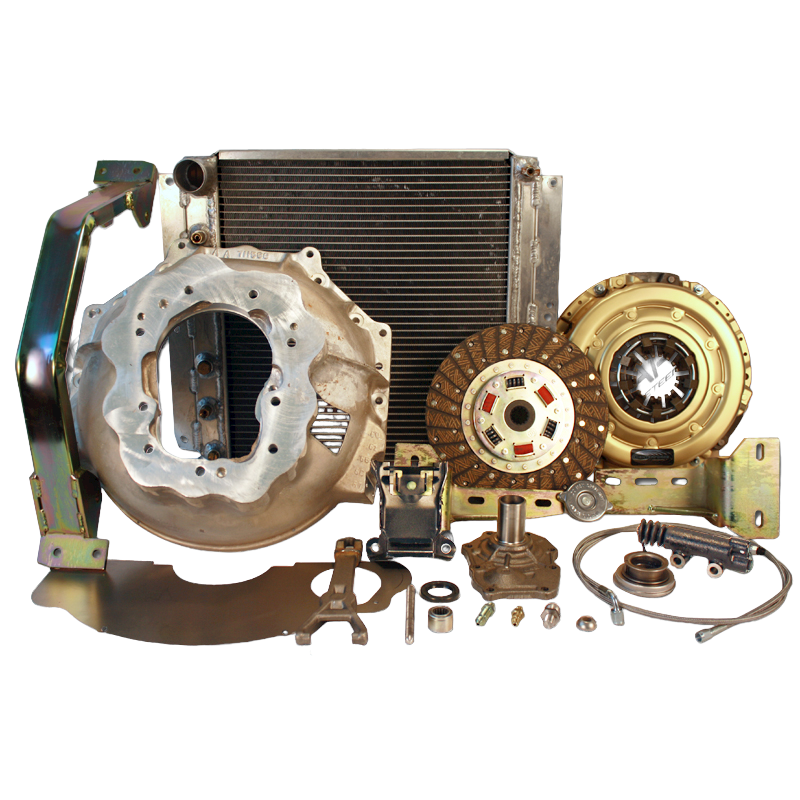

Kit Includes:

1. PN712567 -Bellhousing Adapter Kit
2. PN713091 -Engine Mount System
3. PN715542 -TJ Transfer case shifter bracket
4. PN716130TJ -Hydraulic Fitting
5. PNLC360056 -Pressure Plate
6. N1430 -Release Bearing
7. PN716693-AA -Aluminum High Flow Radiator
8. PN716679 -22LB. Radiator Cap
9. PN716213 -Slave Cylinder
10. PN716130-60 -60" Stainless Steel Braided Hydraulic Hose

Bill Of Materials

• JEEP AX15/NV3550 TO GM & BUICK BHSG / 712567
• GM V8 MOTOR MOUNT 97-05 JEEP TJ 6CYL WRANGLE / 713091
• TJ TRANSFER CASE SHIFT BRKT / 715542
• HOSE-60 STAINLESS -3 FITTING / 716130-60
• FITTING JEEP TJ MASTER CYL. / 716130TJ
• SLAVE CYLINDER-TLC / 716213
• 22lbs RADIATOR PRESSURE CAP / 716679
• 1987-06 JEEP TO GM V8 MANUAL / 716693-AA
• LUK CHEVY 10.5 (HI-PRO)ASSYBLY / LC360056
