GM V8 BOLT-IN MT.76-86 CJ7

Advance Adapter

Note: It is not recommended to use this bolt-in engine mount kit when attempting to retain the stock Jeep transmission (manual or automatic). You should not use these mounts if your switching to a left drop transfer case.

This bolt-in, engine mount kit is designed for exclusive use in the 1976-86 Jeep CJ-7. It is used to install a GM V8 / 4.3 V6 and TH350 / 700R / 4L60 / 4L60E at the same time. This bolt-in engine kit is ideal only when using a GM auto.

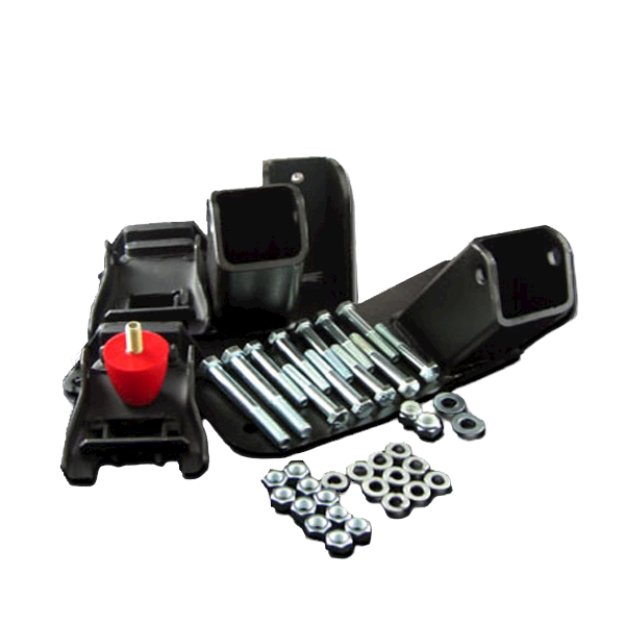

The bolt-in engine mount kit includes our bolt-in engine mount frame perches, stock GM engine rubber mount / cushions, bump stop, fastening hardware and engine mount instructions.

Note: The bolt-in engine mount saddle does not fit GM's late model Gen III / LS-Series engines.

Bill Of Materials

• CHEVY V8-CJ7 BOLT-IN MOUNT Right / 713089-R
• CHEVY V8-CJ7 BOLT-IN MOUNT LEFT / 713089-L
• FLAT WASHER 7/16 SAE ZINC / 724302
• NYLON LOCK NUT 7/16 -14 PLT / 724301
• H.H.C.S. 7/16 -14 X 3-1/2 GR 5 zinc / 724311
• 3/8 -16 X 2-3/4 H.H.C.S. / 723738
• NUT 3/8 -16 PLATED GRD 5 / 723701
• RUBBER BUMP STOP CJ BOLT-IN MT / 713089S
• 3/8 -16 X 2-1/2 H.H.C.S. gr. 5 zinc / 723733
• LOCK WASHER 3/8 ZINC / 723704
• MOUNT-STOCK GM / 4980
