TJ V8 WITH NV3550 TRANS

Jeep TJ Wrangler 1997-2004 Chevy V8 Conversion Packages

Designed for the Gen 1 & Gen 2 GM Engines with the 153 tooth 12.75" Diameter Flywheel.

The installation of the bellhousings in these kits will require the transmission to be moved forward 2" to 2.5" so drive shaft modifications, 1" body lift, and 4" suspension lift required.

Vehicles Equipped with NV3550 Five Speed Transmissions

• For use with stock NV3550 5 speed transmissions. This transmission option was available from 2000-2004 and was always mated to the stock 4.0L High Output inline 6 cylinder engine. The NV3550 is considered a very adequate transmission and has been a popular choice for conversions with higher horse power and larger tires. Please note that this conversion package is only compatible with Chevy V8 or 4.3 V6 engines that are equipped or have the ability to be equipped with the 12.75" Chevrolet 153 tooth flywheel. Please click on the part numbers below for a more in depth look at the kit components individually.

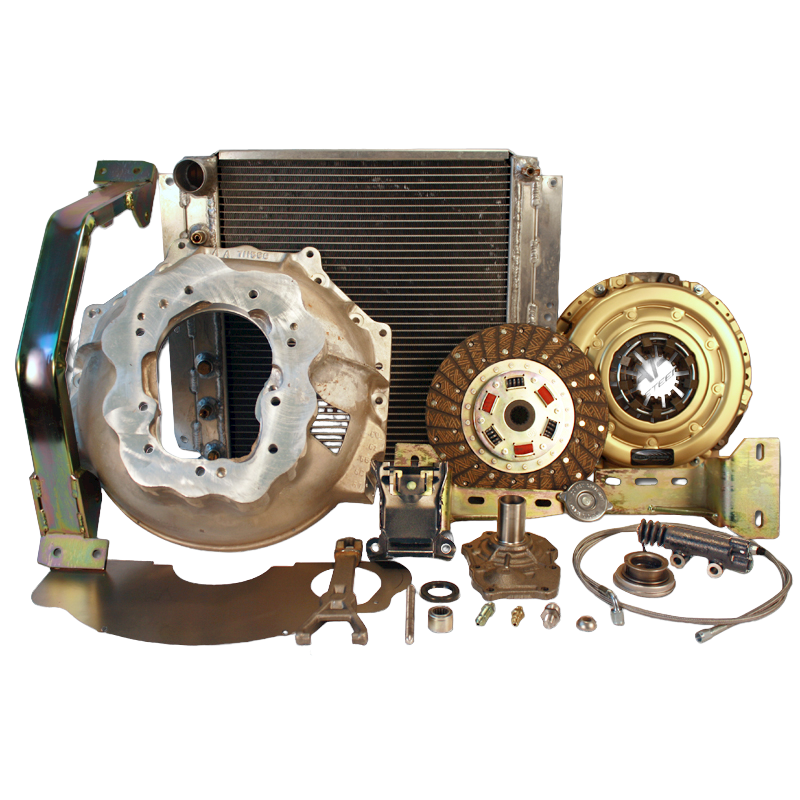

Kit Includes:

1. PN712591 -Bellhousing Adapter Kit
2. PN713091 -Engine Mount System
3. PN715542 -TJ Transfer case shifter bracket
4. PN716130TJ -Hydraulic Fitting
5. PNLC360056 -Pressure Plate
6. PNN1714 -Release Bearing
7. PN716693-AA -Aluminum High Flow Radiator
8. PN716679 -22LB. Radiator Cap
9. PN716213 -Slave Cylinder
10. PN716130-60 -60" Stainless Steel Braided Hydraulic Hose

Bill Of Materials

• JEEP NV3550 TO CHEVY BHSG / 712591
• GM V8 MOTOR MOUNT 97-05 JEEP TJ 6CYL WRANGLE / 713091
• TJ TRANSFER CASE SHIFT BRKT / 715542
• HOSE-60 STAINLESS -3 FITTING / 716130-60
• FITTING JEEP TJ MASTER CYL. / 716130TJ
• SLAVE CYLINDER-TLC / 716213
• 22lbs RADIATOR PRESSURE CAP / 716679
• 1987-06 JEEP TO GM V8 MANUAL / 716693-AA
• LUK CHEVY 10.5 (HI-PRO)ASSYBLY / LC360056
• FORD T/O BRG.GM ARM/FORD DIA / N1714
