4L60E SHORTY ATLAS 2 and 4 SPEED KIT

Advance Adapter

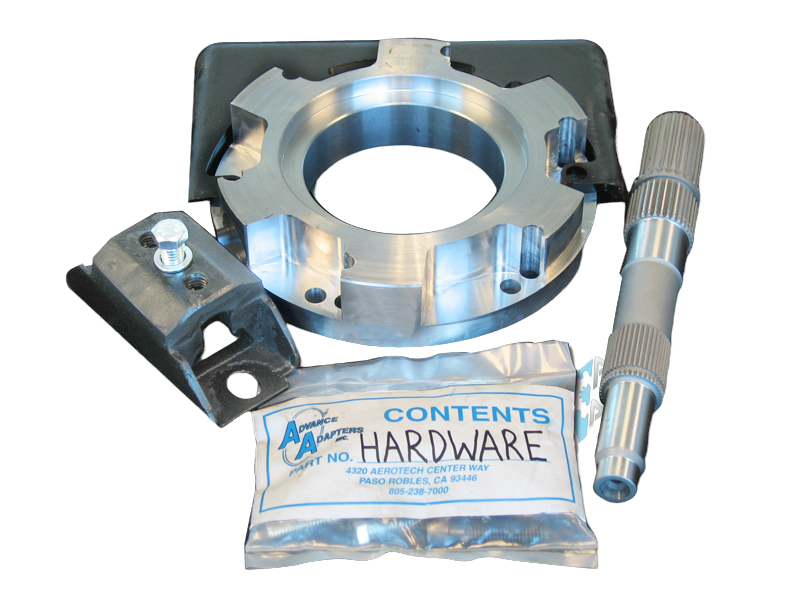

Advance Adapters is proud to offer our shorty 4L60E to Atlas transfer case adapter assembly. The adapter is only 1.625” in length and includes a GM VSS kit incorporated within’. This adapter assembly is for exclusive use with the late model 4L60E with removable bell housing and includes a new 400M billet output shaft. We also include a heavy duty transmission mount that bolts to our adapter housing.

This adapter assembly can also be used with the Jeep New Process 231, 242, 247, 249 with 2" input shaft stick-out lengths.

Transmission

The adapter kit is designed for exclusive use with a late model 4L60E with a removable bellhousing.

Bill Of Materials

• 3/8 INT.STAR WASHER / 911003
• BOLT 3/8 -16 X 2.00" SHCS / 723766
• 10mm X 1.5 40mm SOCKET SET SCR / 720094
• RELUCTOR- ATLAS INPUT / 300617
• SENSOR- SPEEDOMETER / 300619
• S.H.C.S. 7/16 -20 X 1.250 / 724314
• 8mm X 1.25 X 20mm H.H.C.S. 8.8 zinc / 720095
• BRACKET- 4L60E FOOT MOUNT SHORT / 716090
• 4L60E O RING / 716520
• CROSS MEMBER MOUNT / 716654
• SHAFT- 4L60E TO ATLAS 23 SPLINE / 52-9300
• 10mm X 1.5 50mm SOCKET SET SCR cup pt. / 720093
• NUT- 10MM X 1.50 zinc / 720011
• 4L60E TO ATLAS 2 and 4 SPEED ADAP / 51-9305
• SCREW- RELUCTOR RING / 300617A
