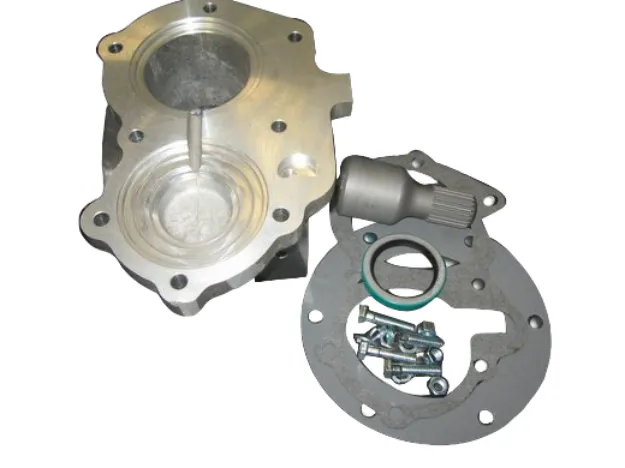

Advance Adapter This adapter kit will allow you to adapt the GM SM465 4WD, 4 speed transmission to the Jeep NP231 transfer case. The adapter is 5.25 in length and is made from strong 356 T-6 heat treated aluminum alloy. The adapter kit includes a adapter housing, new spud shaft, gaskets, seal, fastening hardware, and adapter instructions. Transfer Case The adapter assembly fits the NP231 23 spline transfer case & NP231 21spline with the addition of PN716053. This adapter assembly is designed for exclusive use with the 4WD, GM SM465 4 speed manual with a 10 spline output shaft. This top loaded heavy-duty transmission has a cast iron case, and is 12" in length. It was used in GM trucks from 1968 to 1988. The SM465 was used in both 2wd & 4wd applications with 3 various output shaft spline counts of 10, 32, & 35 splines.
Bill Of Materials
Products specifications
|
Transmissions
|
Muncie SM465 Manual 4 Wheel Drive GM 1969-1982 |
|
Transfer Cases
|
Jeep New Process 241OR (23 Spline) |
|
Transfer Cases
|
Jeep New Process 241 (23 Spline) |
|
Transfer Cases
|
Jeep New Process 231 (23 Spline Input) |
