NV4500 & TR-4050 GM BHSG ADAPT.KIT

Advance Adapter

This adapter bellhousing assembly is used to adapt the GM 4.3, V8, LS-Series engines to the NV4500 & TR-4050 5 speed transmission.

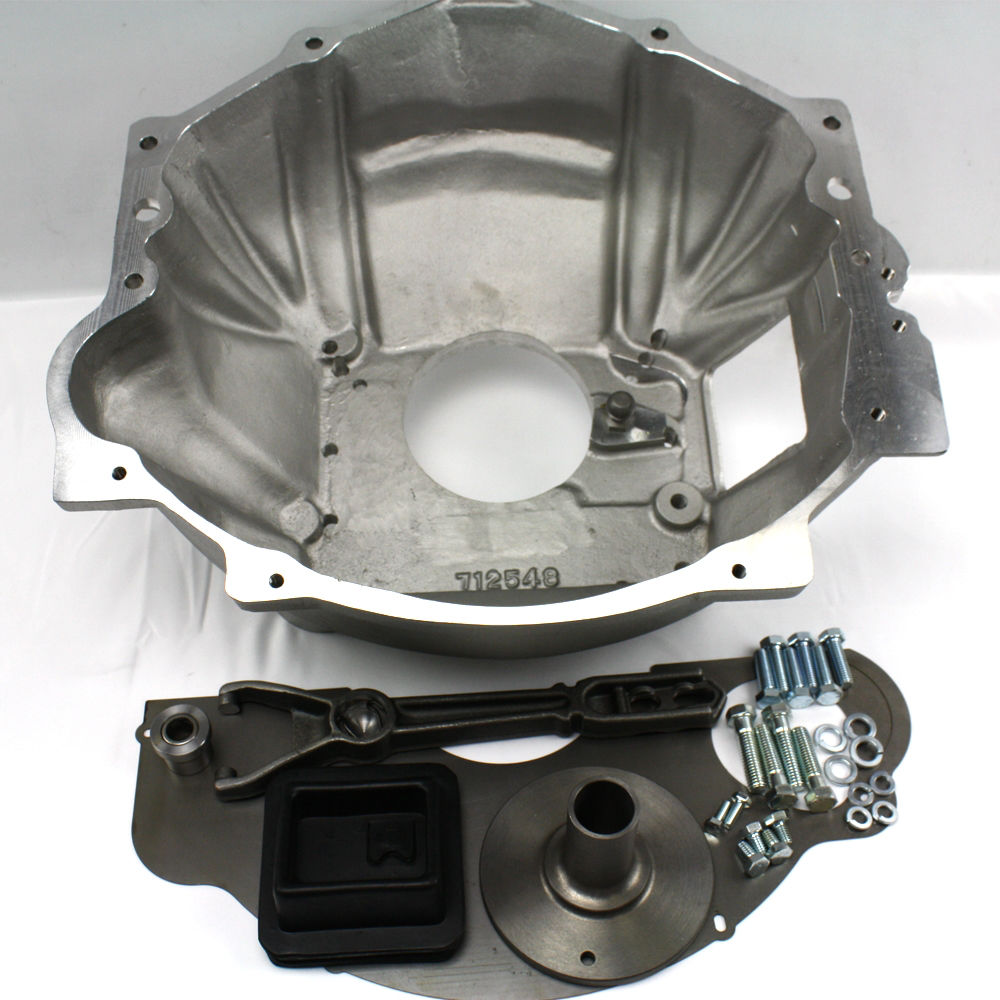

The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, bolt-on bearing retainer for the 1996 & up GM NV4500 and TR-4050, pilot bearing, throw-out arm, ball pivot, throw-out boot, fastening hardware, and adapter instructions.

Transmission

The bellhousing fits 1996 & up GM NV4500 and 1993 & up Dodge gasoline NV4500. For customers that have a Dodge gas version, you will need to purchase a new GM NV4500 input shaft that was used with the 5.61:1-1st gear (p/n 52-0221) and machine the input retainer to use this bellhousing kit.

Note: Don't forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!

Bill Of Materials

• DUST SHIELD- GM BELL HSG / 712548-PLT
• NV4500-1996 GM BHSG ADAPT.KIT / 712576-BLK
• RETAINER- NV4500 GM INPUT BEARING / 716067A
• BUSHING- PILOT EXTENDED GM 712576 / 716154
• LEVER- THROW-OUT CLUTCH GM / 716176
• GM THROW-OUT LEVER SPRING CLIP / 716176SC
• BALL PIVOT-AA BELL HOUSING / 716180
• T/O ARM BOOT - A/A BHSG. / 716332
• 712577/76 KIT BOLT PACK / 714209
