Advance Adapter

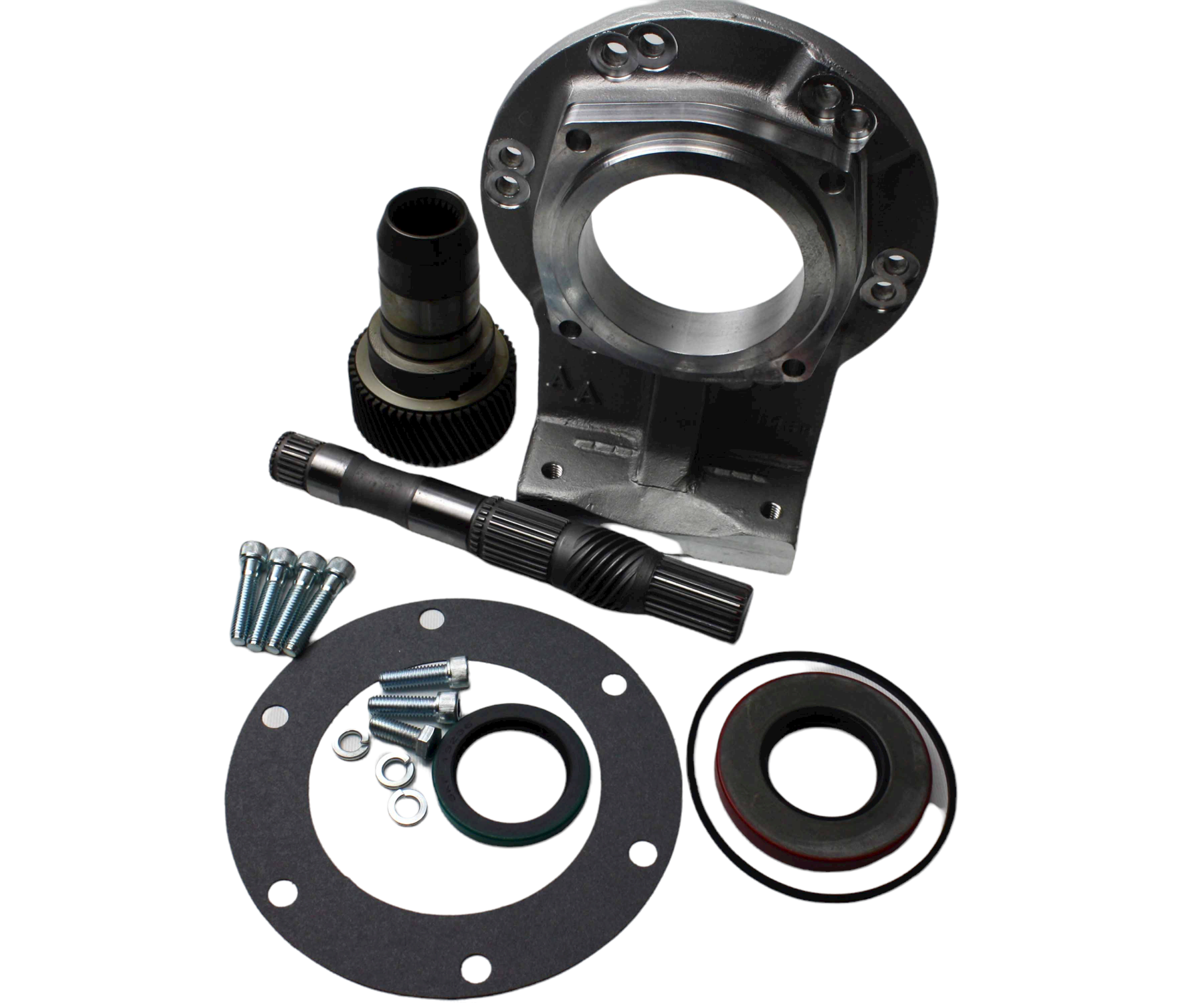

Our Advance Adapter 50-6802 will allow you to adapt a GM 2WD TH350 3 speed automatic transmission to the Jeep NP231 transfer case. The adapter housing is 1.50" in length and is manufactured from 356-T6 heat treated aluminum alloy. We also supply a mounting provision on the bottom of the housing to bolt-on our heavy duty transmission mount (716008). The adapter kit includes an adapter housing, new TH350 27 spline output shaft, new 27 spline input gear, bearing, gasket, seal, o-ring, fastening hardware and adapter instructions.
Transfer Case
The adapter assembly will fit the Jeep NP231 transfer case 1995 and later.
The Advance Adapter kit is designed to fit Jeep New Process / NVG model 231 only
Transmission
This adapter kit is designed for exclusive use with the 2WD GM TH350 automatic transmission.
The TH350 transmission was first mass produced in 1969 for both 2WD and 4WD vehicles and remained prevalent through 1982. The transmission was standard for most V6 and V8 vehicles. The Th350 transmission can be identified by its 21-1/2" long one piece aluminum case. The transmission has an integral or non-removable bellhousing.
Bill Of Materials
Products specifications
|
Transfer Cases
|
Jeep New Process 231 (23 Spline Input) |
|
Transfer Cases
|
Jeep New Process 241 (23 Spline) |
|
Transfer Cases
|
Jeep New Process 241OR (23 Spline) |
|
Transmissions
|
GM TH350 Automatic 2 Wheel Drive GM 1972-1984 |
|
Transmissions
|
GM TH350 Automatic 4 Wheel Drive GM 1972-1984 |
