TOYOTA 4WD CHAIN T/C X GEAR TC

Advance Adapter

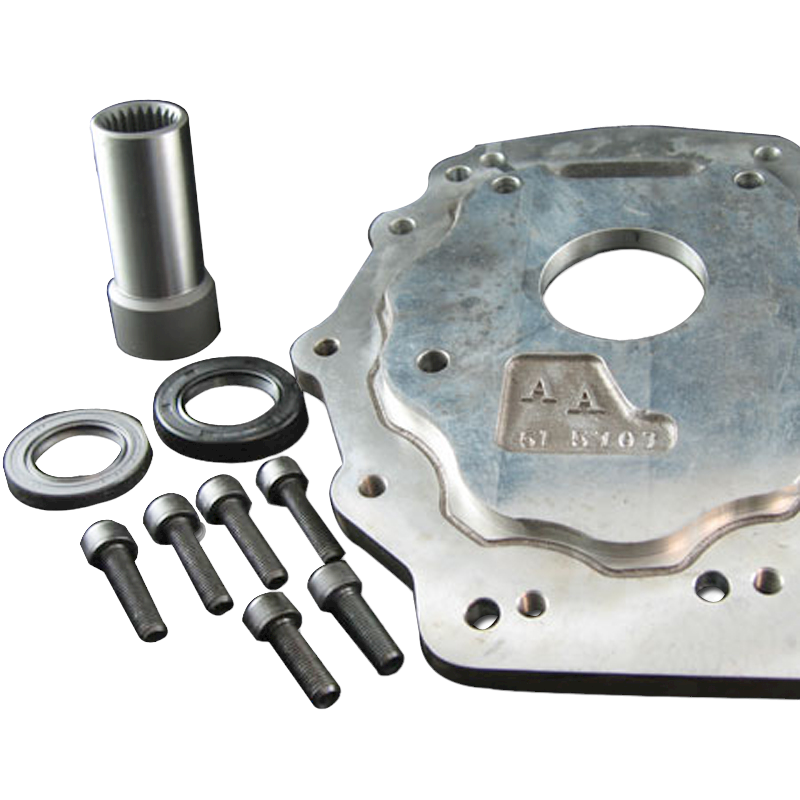

This adapter kit will couple the Toyota Truck 4wd gear-driven transfer case to be used with a R151F 5 speed replacing the original chain-driven transfer case. The adapter kit includes an adapter plate, female 23x23 coupler oil seals, fastening hardware and adapter instructions.

Transfer Case

The adapter assembly fits the Toyota Truck 23 spline gear driven transfer cases. This transfer case has a male 23 spline input shaft and can also be identified by 7 bolts attaching the tailhousing to the transfer case.

Transmission

This kit is designed for exclusive use with the R150F 5 speed manual transmission. The 5 speeds use a 23 spline output shaft and normally used behind the 3.0 litre V6 engine (R150F).

Bill Of Materials

• TOYOTA PU CHAIN TO 21sp GEAR TC / 51-5708
• COUPLER- TOYOTA 23T TO 23T / 52-5943
• SLEEVE- SEAL EXTENSION / 716248
• SEAL 55MM BORE X 34MM SHAFT / 716720
• 10mm X 1.25 X 30mm S.H.C.S. / 720030
• 10mm X 1.25 X 40mm S.H.C.S. GRD5 / 720087
