TOYOTA 4 SPD TO CHEVY KIT

Advance Adapter

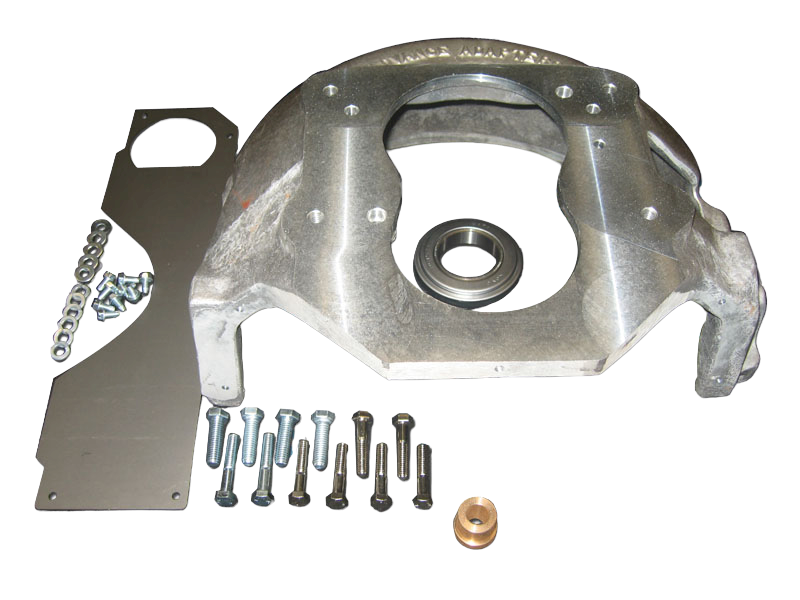

The Advance Adapters bell housing kit is used to adapt the GM V6 & V8 engines to the Toyota Landcruiser FJ40 / FJ55 4 speed manual transmission. The bellhousing is manufactured from strong 356 T-6 heat treated aluminum alloy. Included in the bell housing kit you will receive an aluminum bellhousing, universal dust cover, pilot bushing, clutch release bearing, fastening hardware and adapter instructions.

Note: When using our bellhousing, the original ball pivot, release arm, release bearing collar, slave cylinder, and inspection cover must be retained.

Transmission

This adapter bellhousing kit is used exclusively with the 1974-80, H42 4 speed transmission. The H42 is a heavy duty 4 speed transmission and is capable of handling most V8 power.

Required Options

P/N CF165473S 11" Pressure Plate

P/N 383735 11" Clutch Disc

Bill Of Materials

• 1/4 -20 X 1/2 SELF TAPPING H.H.C.S. / 722540
• 1/4 USS FLAT WASHER PLTD. / 722523
• H.H.C.S. 3/8 -16 X 1-3/4 PLT G5 / 723724
• LOCK WASHER 3/8 ZINC / 723704
• DUST SHIELD- TLC 4SP TO GM ENG / 712532-PLT
• BELLHOUSING BULK INV. / 712532-BLK
• T/0 BRG. LOW-DIAPH CLUTCH / 716314
• BUSHING- PILOT EXTENDED GM 712576 / 716154
• 7/16 -14 X 1-1/2 Grd 5 hhcs / 724349
• H.H.C.S. 3/8 -16 X 2 PLATE GR 5 / 723725
