Toyota Land Cruiser Mechanical T/C bracket for 3 and 4 Speed Transfer case conversions

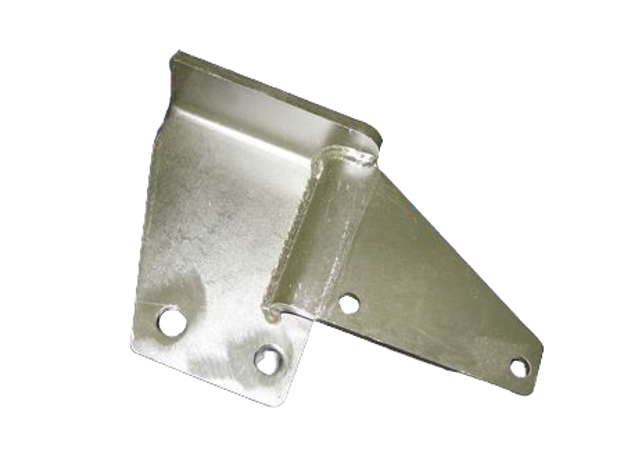

This pivot bracket that bolts to the Transfer Case adapter giving a pivot point to retain the stock mechanical linkage. It is best to assemble this bracket and control linkage prior to the assembly into the vehicle. You must make sure that the linkage is in the same relative location to the transfer case as it was on the original transmission. Any variation to the location could possibly cause the transfer case to jump out of gear.
If there is interference with the modulator, a smaller diameter shorter modulator is available , we carry this product under the part number PN716010. In some cases, you may need to space the new bracket off the casting slightly to obtain addition clearance on the modulator.
Bill Of Materials
Products specifications
|
Transmissions
|
GM TH350 Automatic 4 Wheel Drive GM 1972-1984 |
|
Transmissions
|
GM TH350 Automatic 2 Wheel Drive GM 1972-1984 |
|
Model
|
FJ55 |
|
Model
|
FJ40 |
|
Transfer Cases
|
Toyota Land Cruiser (1974-July 1980) - (16 Spline Input) |
|
Transfer Cases
|
Toyota Land Cruiser (1963-1973) - (10 Spline Input) |
|
Make
|
Toyota |
