GM TH400 Transmission Adapter Specs

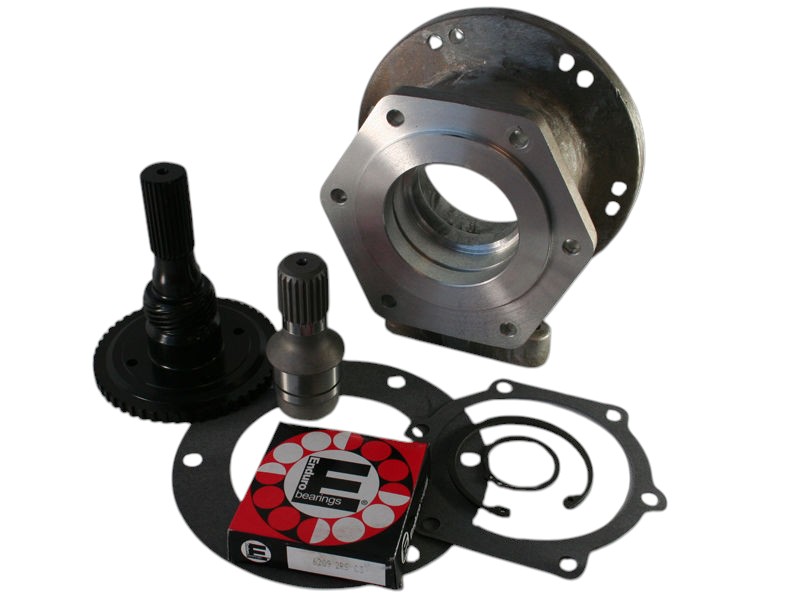

The GM TH400 automatic transmission adapter forto the Jeep Dana 300 is 4.250” in length. The adapter material is 356 T6 heat-treated aluminum alloy and has a provision for a transmission mount. The adapter kit includes an adapter housing, new 27-spline TH400 output shaft, 27x23 spud shaft, a bearing, snap rings, gaskets, fastening hardware, and adapter instructions.
Note: Please specify when using the AMC TH400 version. The GM TH400 and AMC TH400 are similar products; however, the difference is that the AMC version has a rotated rear 6-bolt pattern.
Transfer Case
The adapter assembly fits the1980 to 19-86 Jeep Dana 300. All 300s use a 23-spline input. Some of the adapters we manufacture include a new Dana 300 input with a different input spline. Therefore, if you obtain a Dana 300 from a salvage yard, please verify the input spline.
Transmission
This adapter kit is designed for exclusive use with the 4WD GM TH400 automatic transmission. The TH400 has a case length of 24.250” and a “Texas-shaped” oil pan underneath beneathit. The factory output shaft has a 32-spline count of 32 spline and had various output stick-out lengths.
Note: Our adapter kit is designed to replace TH400 output shafts with stick-out lengths of 1.5” and& 2.5”.
If you have questions about this product or are unsure if this TH400 4 x 4 transfer adapter kit is right for your use, please reach out to the experts at Advance Adapters. Fill out the contact page quick form, and a knowledgeable team member will respond shortly.
Bill Of Materials
50-6400
