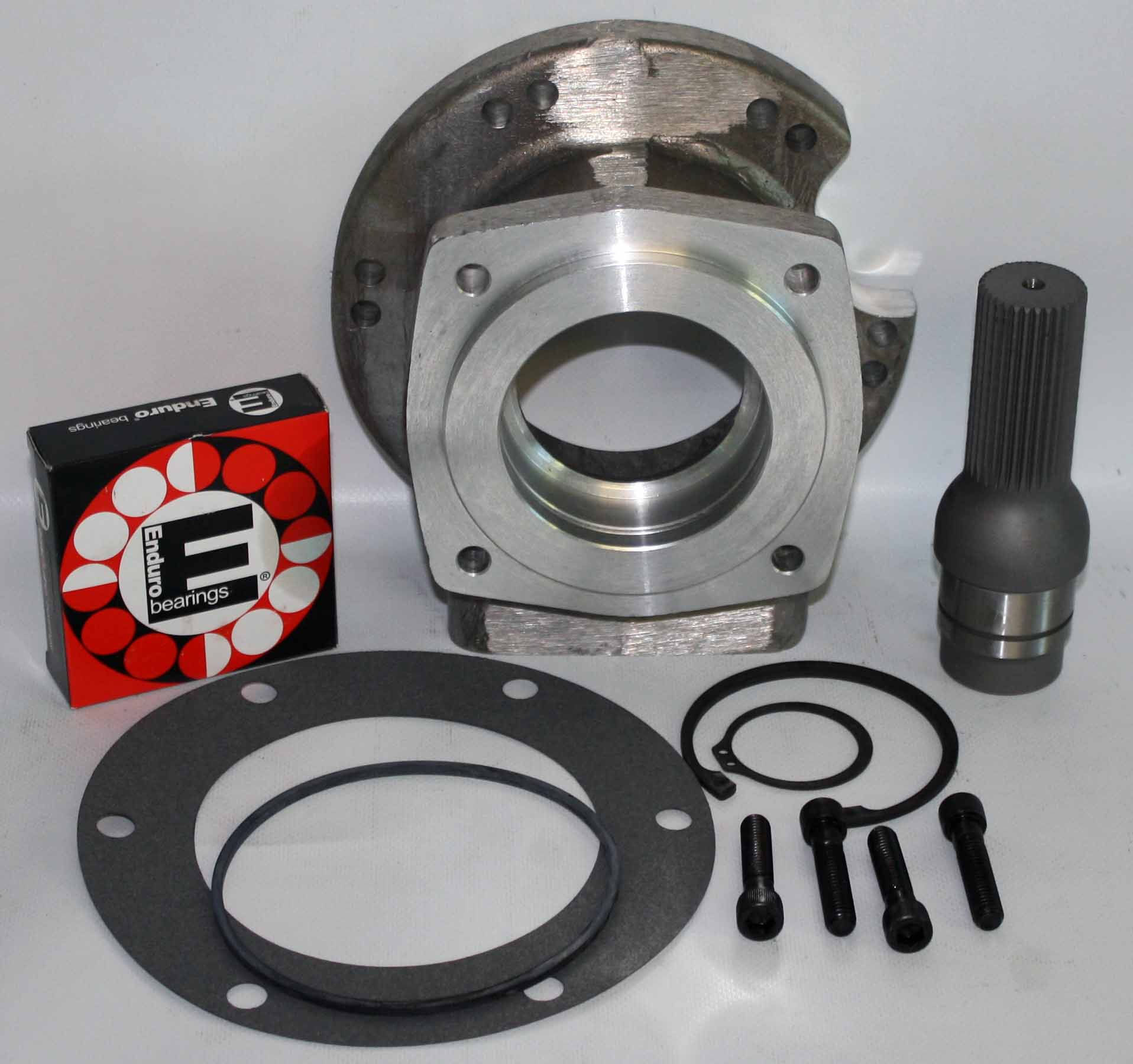

Kit 50-6909 will adapt the 4WD GM TH350 transmission to Ford Borg Warner 1345 / 1356 and NP205 transfer cases. The adapter is 3.625" in length and manufactured using 356 T-6 heat treated aluminum alloy. The adapter lit includes an adapter housing, 27 spline x 31 spline spud shaft, spud shaft bearing, snap rings, o-ring, gasket, fastening hardware and adapter instructions.
Note: When using the NP205 transfer case, a NP205 shifter bracket will need to be fabricated for shifter support.
Transmissions
Adapter assembly is used exclusively with the GM TH350 4wd models.
Bill Of Materials
Products specifications
|
Transfer Cases
|
Ford New Process 208 (31 Spline Input) |
|
Transfer Cases
|
Ford New Process 205 (31 Spline Input) |
|
Transmissions
|
GM TH350 Automatic 4 Wheel Drive GM 1972-1984 |
