SM465 X TOYOTA L/C 16 SPLINE

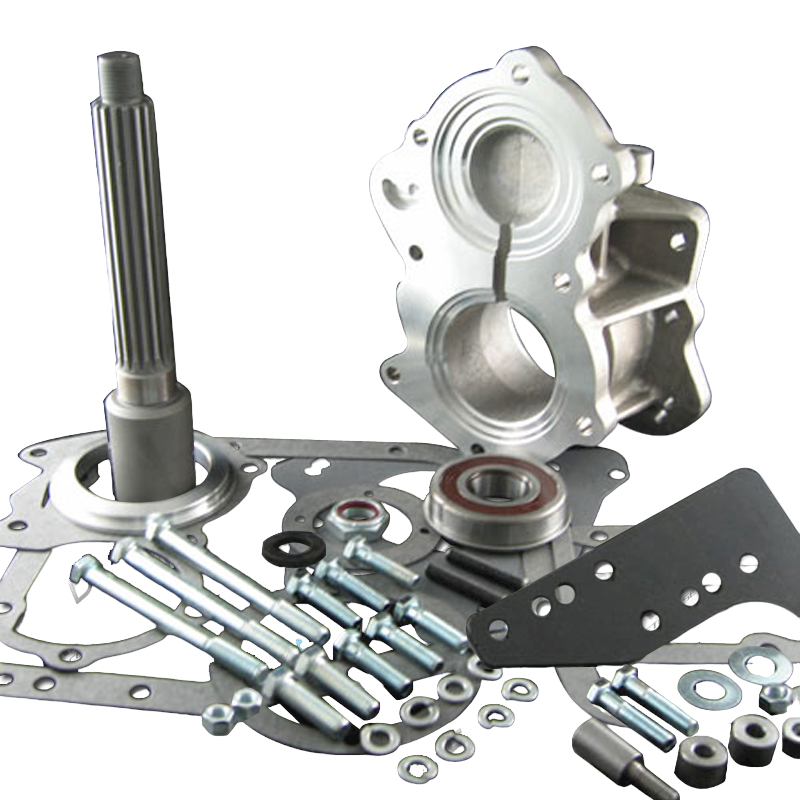

The GM SM465 4 speed manual adapter to the Land Cruiser 16 spline transfer case is 4.625" in length. And the adapter material is 356 T6 heat treated aluminum alloy and has an optional transmission mount provision. The adapter kit includes an adapter housing, 16 spline spud shaft, bearing retainer, sealed bearing, gaskets, fastening hardware and adapter instructions.

Transfer Case

This adapter assembly fits 1974-80 16 spline transfer cases. The drive gear has 16 internal splines.

Transmission

1970-1984 SM465 4WD with 10 spline rear output shaft

Options

716022 Crossmember. This popular mount bolts to that back of the transfer case.

Bill Of Materials

• GASKET-SM465 / 716515
• BEARING SEALED 307 W/ SNAP RING/ LANDCRUISER / 716301
• NUT 3/8 -16 PLATED GRD 5 / 723701
• T.C. GASKET/JEEP&TOY L/C / 716568
• SHAFT- TOYOTA-4SP 16SPL/10T INTERNAL / 52-4601
• SM465-CASTING TO JEEP & TOY. / 51-8700
• TOYOTA T/C BEARING RETAINER / 716013
• SM465 TO TOY L/C TC LINK.BRKT / 715530
• NUT-NYLON LOCK 7/8 -16 / 728701
• 7/16 -14 X 1-1/2 Grd 5 hhcs / 724349
• SPECIAL FLAT WASHER / 728702
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
• LOCK WASHER 3/8 ZINC / 723704
• H.H.C.S. 7/16 -14 X 5 GRD 5 / 724345
• H.H.C.S. 3/8 -16 X 1-1/2 gr. 5 zinc / 723723
