The NV3550 transmission works well as a replacement transmission for the CJ7s or as a great transmission when performing an engine swap. The NV3550 is approximately 2-1/4" longer than the stock Jeep T5, T4, and SR4 transmissions, and 4-3/4" longer than the T176 transmission. When retrofitting the stock transmission with the NV3550, driveline modifications are to be expected.
The NV3550 also works well when performing an engine swap. We currently manufacture bellhousing adapter plates or a full conversion bellhousing to couple the NV3550 to the GM V6 & V8 blocks, the Ford V8 blocks, and the Jeep blocks. Depending on the choice of engine along with the placement in the frame rails, driveshaft modifications may not be necessary.
Even though the NV3550 has the correct output shaft spline count to fit to the Dana 300 transfer case and the correct indexing, the rear bolt pattern is slightly rotated from that of the Dana 300. The transmissions we sell are modified on the tailhousing to accept the stock Dana 300 bolt pattern rotation.
When installing the Dana 300 to the NV3550, you may be required to modify your transfer case shifter. The pivot pin on the Dana 300 transfer case must be installed so that the cotter pin is closest to the new transmission. You may also be required to grind a bit of the transmission webbing to obtain clearance for the pivot pin. The shifter handle should fit without any modifications.
The NV3550 transmission uses a 4 bolt rubber crossmember support. Our kits supply a crossmember adapter plate to change the four bolt crossmember transmission pad on the NV3550 to a two bolt pattern mount that was used on your stock Jeep. The location of the rubber crossmember mount may not line up with the stock skid pan slots; therefore, you may be required to re-slot your stock skid pan to fit the new transmission assembly.

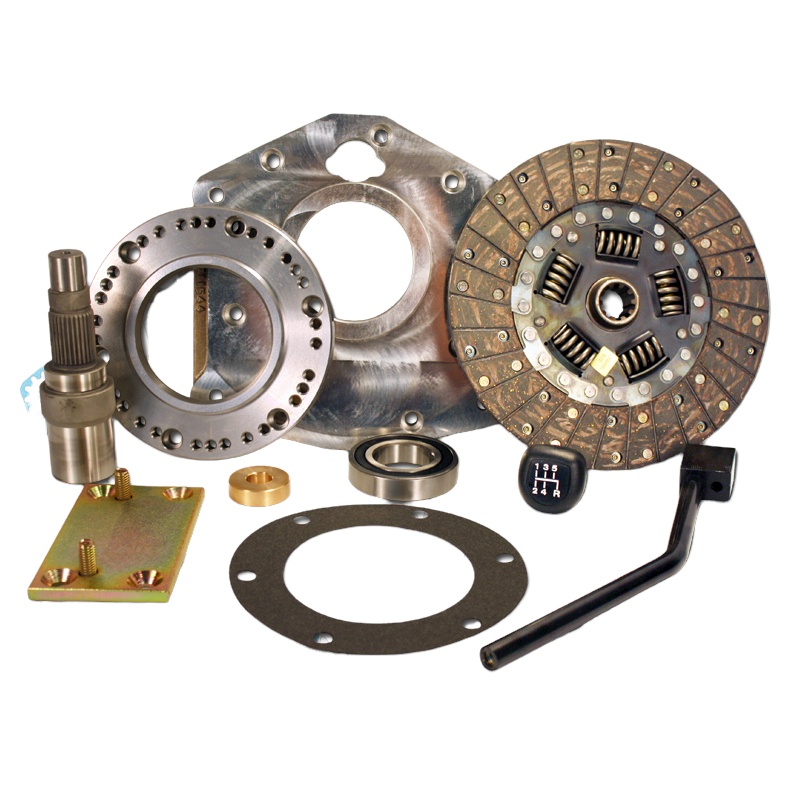

P/N 27-3531AA - NV3550 transmission retrofit (T5, T4, SR4, & T176) This kit includes:
PN50-8604 - Tranfer case adapter PN712545 - Adapter plate NV3550 to Jeep bellhousing (must be a T150 or T176 bellhousing)
PN716007-PLT - Transmission support adapter plate PN716099A - NV3550 transmission shifter handle
Bill Of Materials
27-3531AA
