Advance Adapter

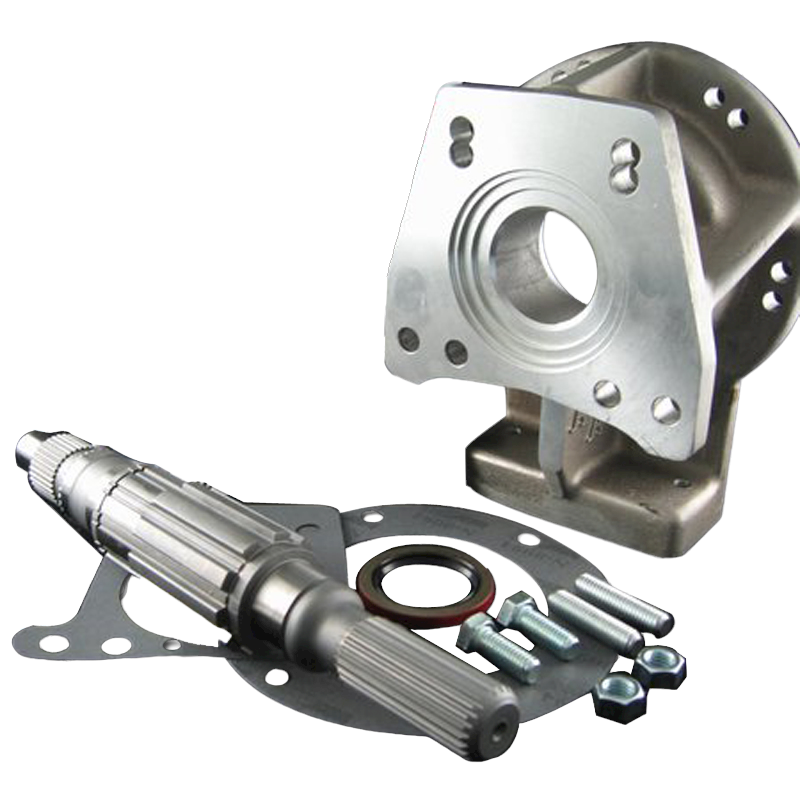

The Ford NP435 4 speed manual adapter to the Jeep Dana 300 is 4.25" in length. Adapter material is a strong 356-T6 heat treated aluminum alloy and the adapter has a provision for a transmission mount. The adapter kit includes a adapter housing, new NP435 output shaft, gaskets, seal, fastening hardware and adapter instructions.
Note: The adapter housing has been drilled to accept both 2wd & 4wd NP435 transmission cases.
Transfer case
The adapter assembly will fit the Jeep Dana 300. This transfer case was used in the 1980-'86 CJ-7 series. All 300s use a 23 spline female input shaft. Some of the adapters we manufacture include a new Dana 300 input with a different input spline. Therefore, if you obtain a Dana 300 from a salvage yard, please verify the input spline.
The Advance Adapter kit is designed to fit Jeep New Process 231, 242, 247, 249, and 2410 Rock-Trac transfer cases.
Transmission
The kit is designed for exclusive use with the Ford NP435 2wd & 4wd 4 speed manual transmissions. The NP435 cast iron case length is 10.875" and has a aluminum top cover. It was used in Ford trucks from 1964-85.
Required Options
716021 Heavy Duty transmission mount. This Heavy Duty mount designed by us will provide years of reliability & strength.
