NP435 X JEEP DANA 18/20-6 SPL

SKU: 50-6102
$708.12
excluding shipping
Ford NP435 to Jeep Dana 18/20 Adapter Kit
Availability:
i h
Digital Downloads

Advance Adapter

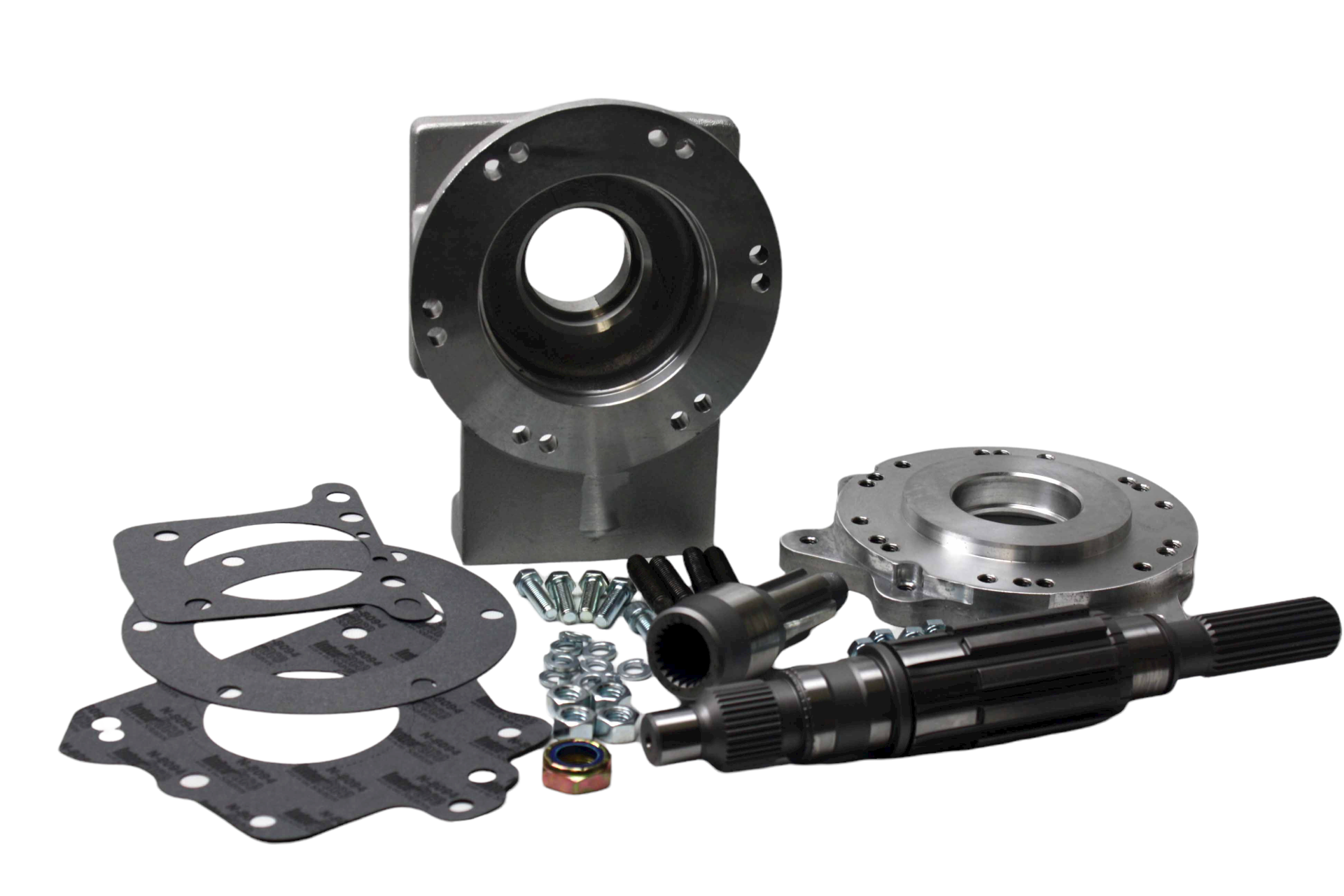

The Ford NP435 4 speed adapter to the Jeep Dana 18/20 transfer case is 3.325" in length. The adapter material is 356 T-6 heat treated aluminum alloy and has a provision for our heavy duty transmission mount. Our adapter kit will include a adapter housing, new NP435 output shaft, gaskets, fastening hardware and adapter instructions.

Note: Adapter housing to NP435 bolt pattern is dual drilled to fit both 2wd & 4wd transmission cases.

Transfer Case

This adapter assembly will fit any Dana Spicer 18 / 20, Scout version with a 6 tooth female drive gear. The transfer case index to the new adapter will require an index retainer & sealed bearing. Please I.D. the transfer case bore size (3-1/8") small hole or (4") large hole for proper retainer. Additional information can be obtained in our on-line catalog, Jeep & Scout Vehicle Section: Transfer Case Information, Jeeps 1941-79.

Transmission

The kit is designed for exclusive use with the Ford NP435. The Ford version NP435 was used from 1964 until 1985, and was used in 4wd & 2wd trucks. This 4 speed has a cast iron case and aluminum top cover. The case length is 10.187". 2nd through 4th gears are synchronized with 1st and reverse gears non- synchronized.

Bill Of Materials

Products specifications
Transfer Cases Jeep Dana Spicer 20 (6 Spline Input)
Transfer Cases Jeep Dana Spicer 18 (6 Spline Input)
Transfer Cases IH Scout Dana Spicer 18 (TC-144) - (6 Spline Input)
Transfer Cases IH Scout Dana Spicer 20 (TC-145) - (6 Spline Input)
Transmissions New Process NP435 Manual 4 Wheel Drive Ford 1966-1992
Transmissions New Process NP435 Manual 2 Wheel Drive Ford 1966-1993
