Advance Adapter

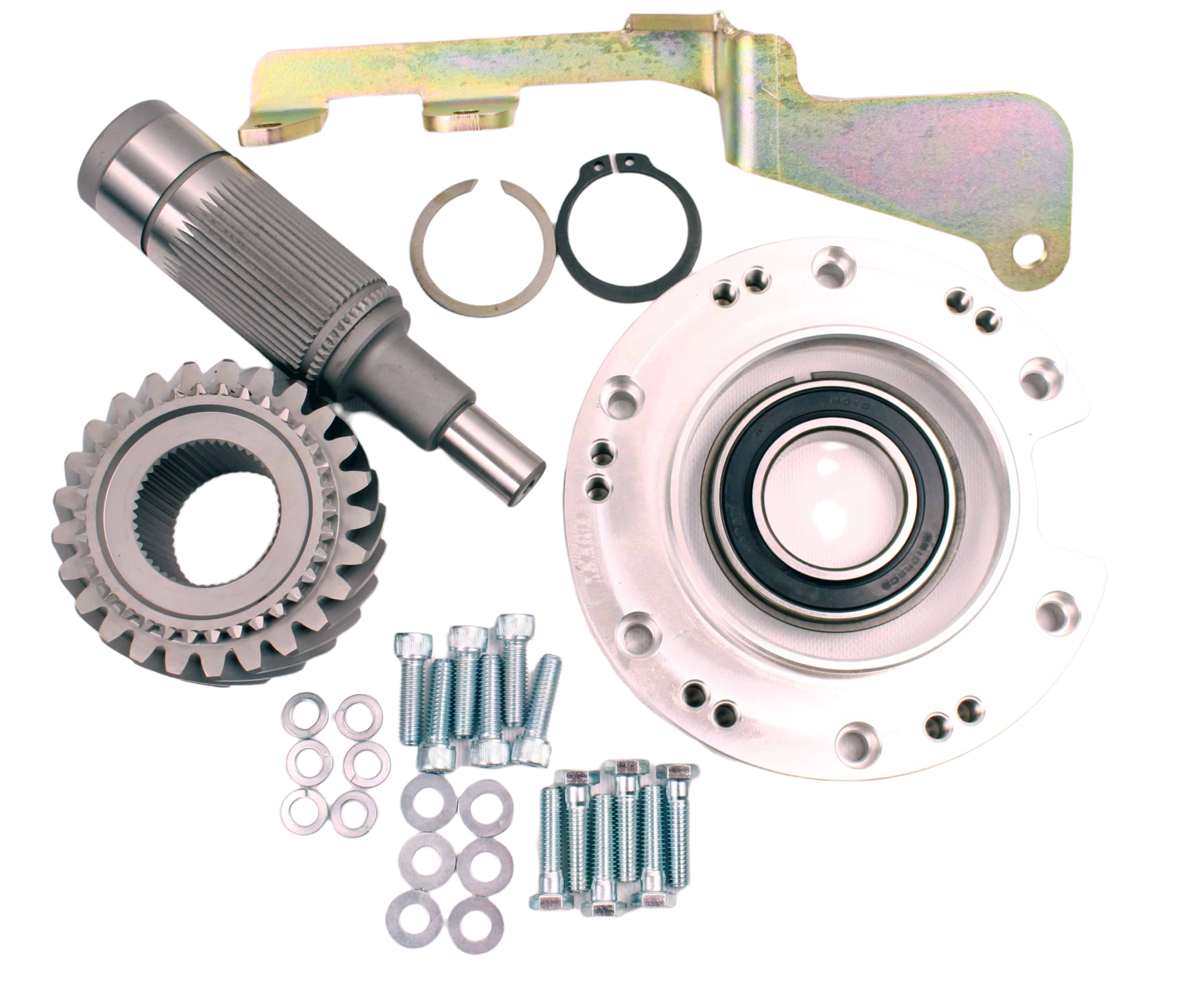

This adapter assembly will adapt a 4wd Dodge NV4500, 29 spline to a GM NP205 transfer case with circular 6 front bolt pattern. The adapter assembly includes a new female 29 spline NP205 input shaft, gear, adapter ring, NP205 transfer case shifter support bracket and fastening hardware.
Transfer Case
This adapter assembly fits the GM NP205 part time transfer case. The GM version is a part time, cast iron and offers a 32 spline female input gear, circular six front bolt pattern and a passenger side front out put shaft. GM used this style of NP205 during the 1985-1991 1 ton trucks.
Transmission
The adapter kit is designed for exclusive use with a Dodge 4WD NV4500 Transmission with a 29 spline output shaft.
Bill Of Materials
Products specifications
|
Transfer Cases
|
GM New Process 205 (32 Spline Input) |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 1999-2000 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 2001-2005 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge Heavy Duty (Diesel) 1993-1998 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge Heavy Duty (Diesel) 1999-2005 |
