GM 4L80E/FORD NP205 TC

Advance Adapter

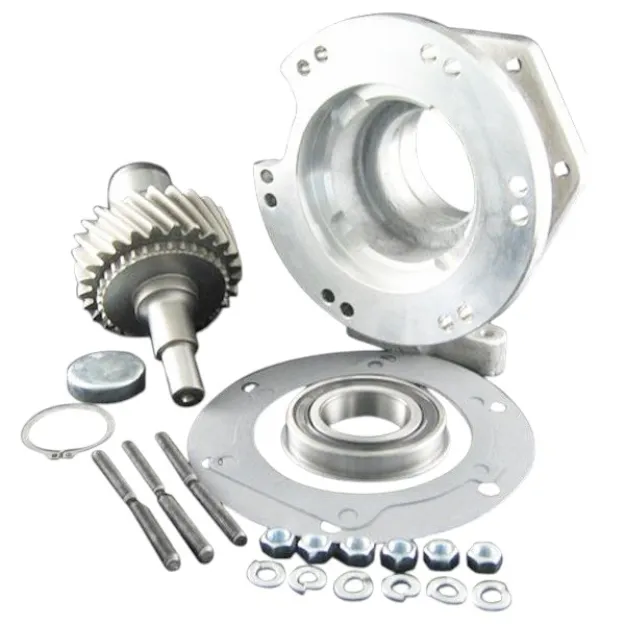

The 4L80E adapter to the Ford NP205 transfer case is a 4.232". The adapter material is 356 T-6 heat treated aluminum alloy and the adapter has a provision for a transmission. The adapter kit includes a adapter housing, NP205 input gear with 32 internal spline, soft plug, new input bearing, snap ring, seal, gaskets, fastening hardware and adapter instructions.

Transfer Case

This adapter assembly fits the Ford NP205 part time transfer case. The Ford version is a part time, cast iron and offers a 31 spline female input gear, circular six front bolt pattern and a drivers side front out put shaft.

Transmission

This adapter kit is designed for exclusive use with the 2WD GM 4L80E with a slip yoke out put shaft. See kit instructions.

Bill Of Materials

• ADAPTER- 4L80E TO FORD NP205 / 51-3205
• GM T400/4L80E 862-4709 GASKET / 716510
• GASKET-N.P.208 TRANSFER CASE / 716517
• NUT 3/8 -16 PLATED GRD 5 / 723701
• LOCK WASHER 3/8 ZINC / 723704
• STUD BOLT 3/8 -16 X 2 LG B7 / 723711
• SNAP-RING EXT INPUT GEAR NP / 340407
• GEAR- NP205 INPUT 46T / 52-9600
• SHAFT- NP205 INPUT 32T SHORT / 52-9602
• BEARING 6210-T/C INPUT GEAR BEARING / 716315
• SNAP RING-EXTERNAL 1 15/16 / 716467
