Advance Adapter

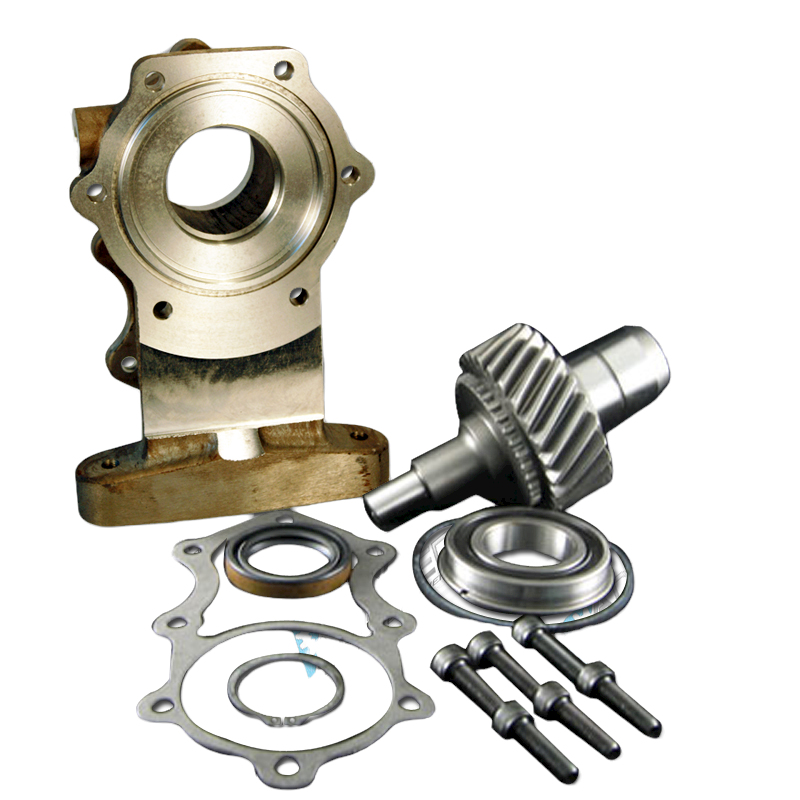

The GM 4L80E 2WD transmission adapter to the GM NP205 is 4.00 in length. And the overall length of this transmission and adapter is 30.00". Adapter material is 356 T-6 heat treated aluminum alloy. The adapter has a provision for a factory GM transmission mount. The adapter kit includes an adapter housing, new input with 32 spline, input gear bearing, gaskets, seal, fastening hardware and adapter instructions.
Transfer Case
The adapter assembly fits 1971-84 GM NP205 with a figure 8 front bolt pattern, and is designed to replace the 10 or 27 spline male inputs. If the GM NP205 is equipped with a 32 spline female input, the new 32 spline input that is included in the kit will not be needed. Call our tech line for more info.
Transmission
The adapter kit is designed for exclusive use with the GM 2WD 4L80E. The 2WD 4L80E must have a 6-1/2" slip yoke output shaft. A GM 2WD 4L80E output shaft speed sensor must be used
Bill Of Materials
Products specifications
|
Transfer Cases
|
GM New Process 205 (10 Spline Input) |
|
Transfer Cases
|
GM New Process 205 (27 Spline Input) |
|
Transmissions
|
GM 4L80E (MT1) Automatic 2 Wheel Drive GM 1991-2006 |
|
Transmissions
|
GM 4L85E (MN8) Automatic 2 Wheel Drive GM 1991-2006 |
