Chevy Gen 3 Vortec to Jeep Torqueflite Transmission

SKU: 716131-V

$586.66

excluding shipping

Chevy Gen 3 Vortec to Jeep torqueflite transmission

Availability:

Qty:

i h

Digital Downloads

716131-V

Overview
Specifications
Contact Us

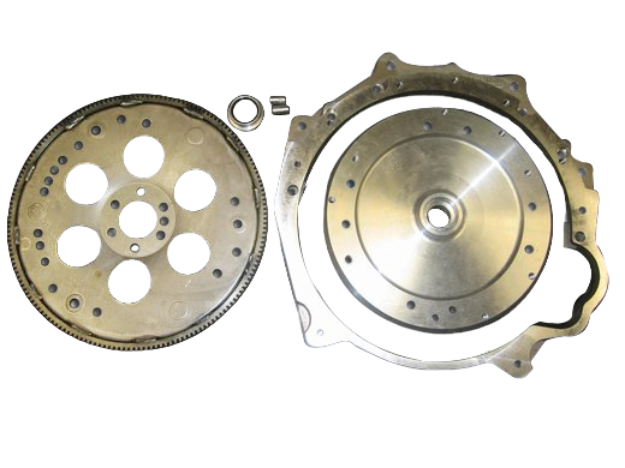

This adapter couples the Gen 3 Vortec Chevy V8 block to the Jeep Torqueflite transmission. The Jeep transmission must be originally coupled to a Jeep V8 or straight 6. The kit includes an Adapter ring, flex plate with torque converter adapter, crank bushing and hardware.

Bill Of Materials

ADAPTER- GM FLEXPLATE TO AMC TORQUE CONVERTER / 716131-TR
GEN-3 FLYWHEELT BOLT 11MM / 716141A
TRANS DOWEL PIN FOR TQFLT. / 716131-DP
DUST SHIELD- GM BELL HSG / 712548-PLT
ADAPTER RING-GM ENG-JEEP TQFLT / 716131
SPACER- GEN III CRANK BUSHING / 716155A
3/8 -16 X 2-1/4 H.H.C.S. / 723744
H.H.C.S. 3/8 -16 X 3/4 PLT GR5 / 723720
LOCK WASHER 3/8 ZINC / 723704
3/8 -24 X 1 GR8 H.H.C.S. / 723760
WASHER 3/8 SAE FLAT PLT / 723735
10mm X 1.25THD NUT FOR 6022 KIT / 720050
LOCK WASHER- 10MM / 720038
BOLT 10mm 1.5 X 35mm SHCS 12.9 ZINC / 720028
5/16 -24 X 1 H.H.C.S. GRD8 NO PLATE / 723136
10mm X 1.5 50mm LONG STUD BOLT / 720061
8mm-1.0 X 25mm H.H.C.S. / 720060
FLEXPLATE- GM LS ENG. TO TH400/TH350 / 711500A4

Products specifications

Engine	Chevy LS Series Gen III & IV
Transmissions	Torque Flite TF-727 Automatic 4 Wheel Drive Jeep 1980-1991
Transmissions	Torque Flite TF-999 (32RH) Automatic 4 Wheel Drive Jeep 1980-2002
