Advance Adapter

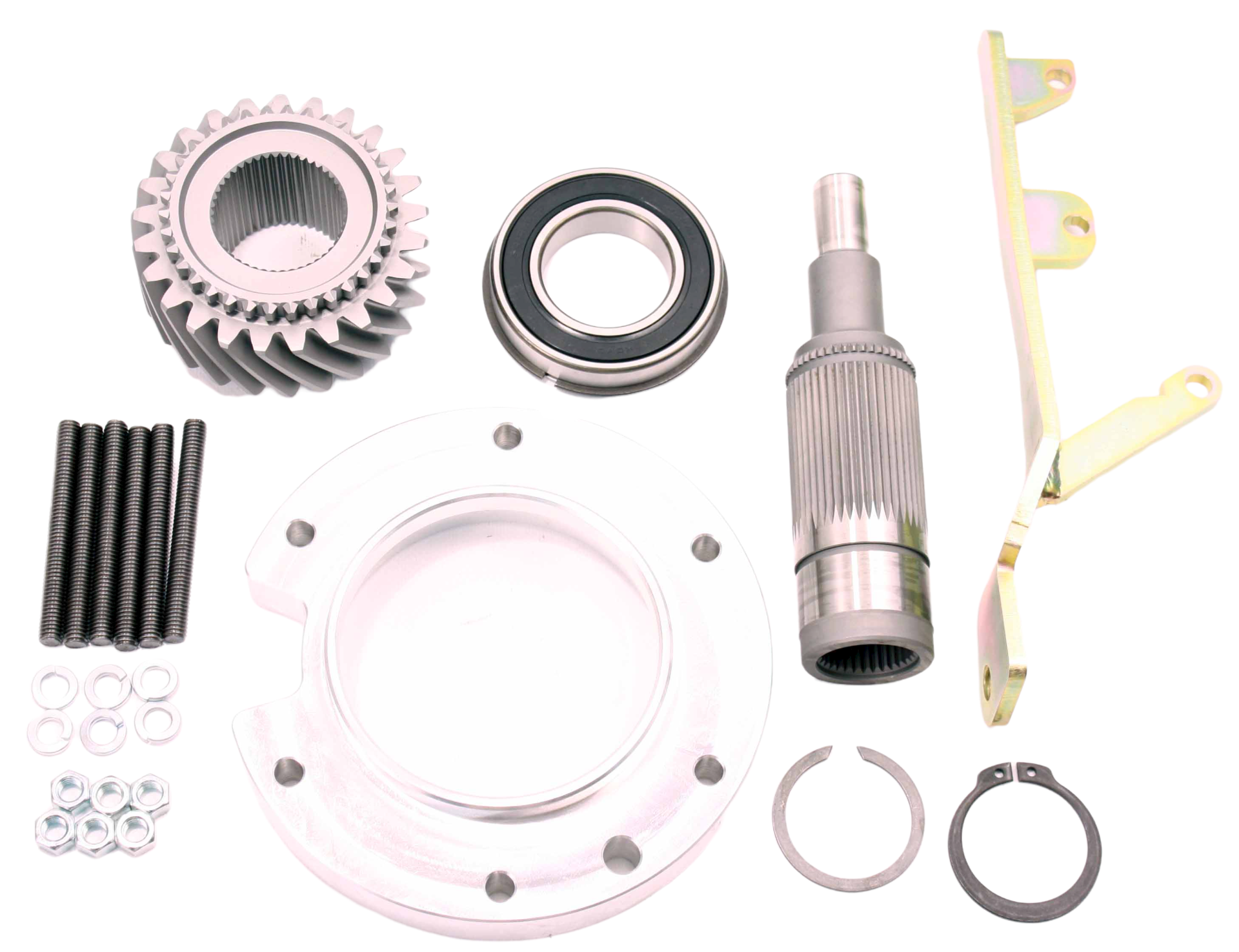

This adapter assembly will adapt a 4wd Dodge NV4500, 29 spline to a Ford NP205 transfer case. The adapter assembly includes a new female 29 spline NP205 input shaft, gear, adapter ring, NP205 transfer case shifter support bracket and fastening hardware.
Transfer Case
This adapter assembly fits the Ford NP205 part time transfer case. The Ford version is a part time, cast iron and offers a 31 spline female input gear, circular six front bolt pattern and a driver’s side front out put shaft.
Transmission
The adapter kit is designed for exclusive use with a Dodge 4WD NV4500Transmission with a 29 spline output shaft.
Bill Of Materials
Products specifications
|
Transfer Cases
|
Ford New Process 205 (31 Spline Input) |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 1999-2000 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge 2001-2005 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge Heavy Duty (Diesel) 1993-1998 |
|
Transmissions
|
New Venture NV4500 Manual 4 Wheel Drive Dodge Heavy Duty (Diesel) 1999-2005 |
