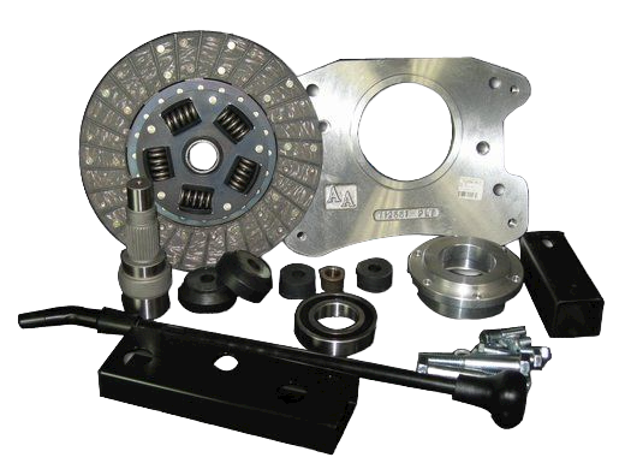

KIT CONSISTS OF:
No. Qty Part No. Description
1. 1 PNLC383271 10.5 CLUTCH DISC
2. 1 PN52-0229 29 SPLINE DANA 300 INPUT GEAR
3. 1 PN712553 DODGE NV4500 TO JEEP/T176 BHSG
4. 1 PN716021 DANA 300 CROSSMEMBER MOUNT
5. 1 PN716048 DANA 300 CROSSMEMBER SPACER
6. 1 PN716050D1 NV4500 SHIFT HANDLE ASSY
7. 1 PN716221 DANA300/NV4500 RETAINER KIT
8. NV4500 OUTPUT SHAFT-MUST BE SHORTENED
INSTALLATION NOTES:
This kit is designed to fit the 29 spline Dodge Standard Duty NV4500 transmission.
This kit requires the use of a stock Jeep bellhousing, Jeep Part Number 8133951 or 3236291.
The overall assembly length is 26.125”. These kits use an adapter plate that bolts to the stock AMC bellhousing. The adapter plate requires the use of a 1976-86 stock Jeep bellhousing from a T150 and T176 (AA PN712599 or Jeep P/N 8133951 or 3236291). These bellhousings permit an easy adaptation to the Dodge NV4500 transmission. The original Jeep clutch linkage is retained since you are using your original bellhousing. Driveline modifications will be required with NV4500 transmission replacements. These kits are not compatible with short wheel-based vehicles such as the CJ5 models. A new index Dana 300 retainer is provided in the kit for proper indexing. Some crossmember modifications are necessary, and a body lift is recommended.
Bill Of Materials
27-0003T
