C4 X BRONCO DANA 20 T/C

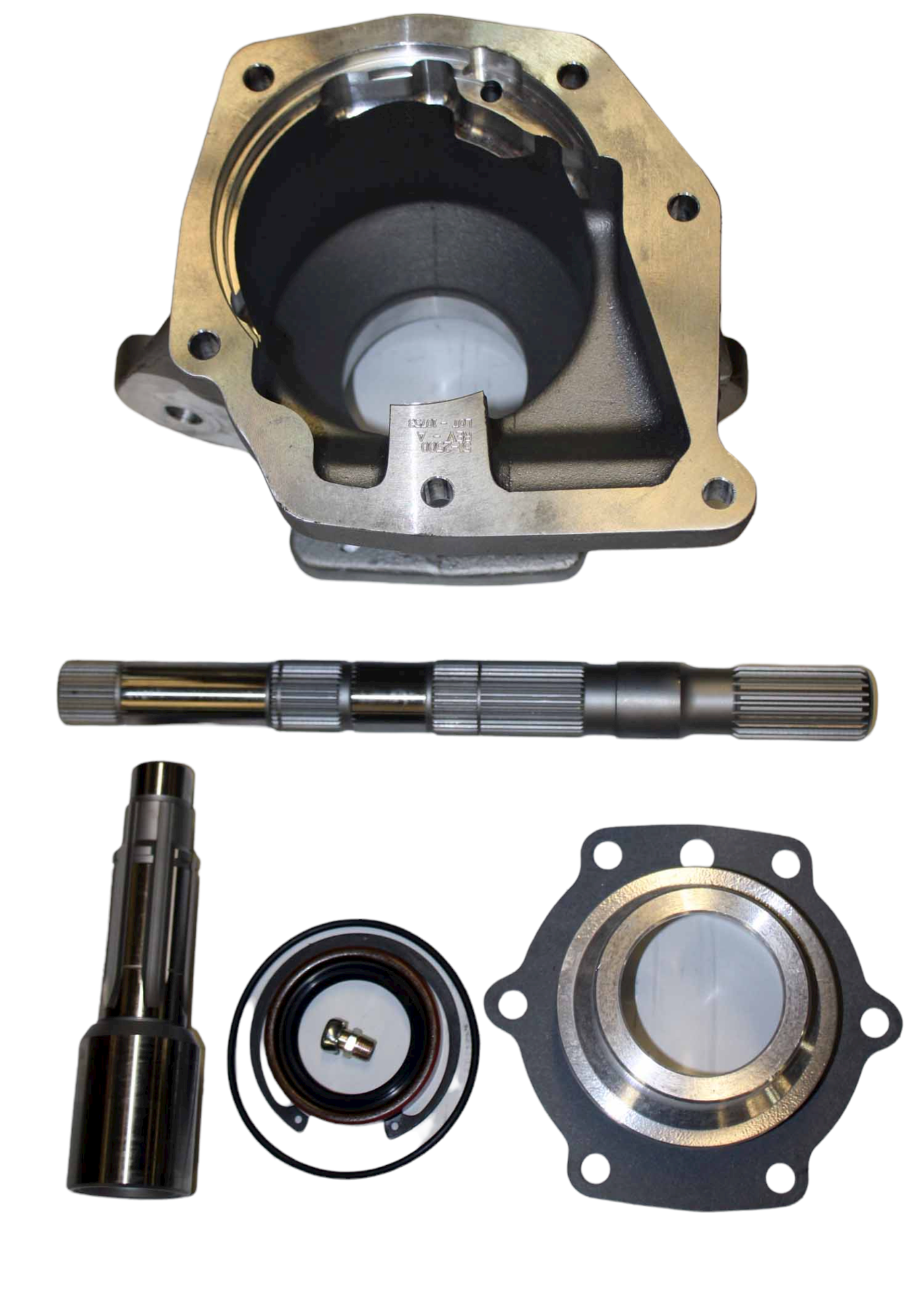

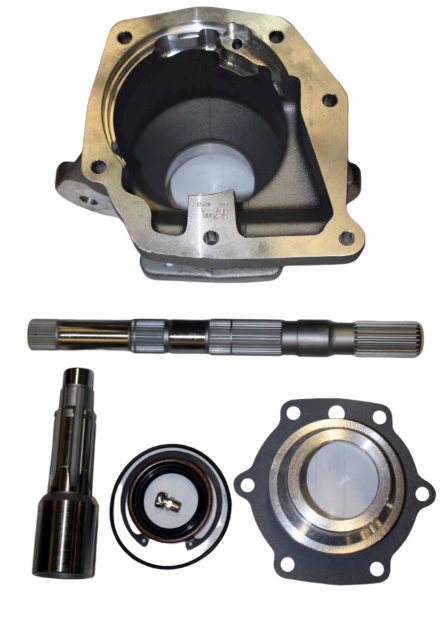

Our Ford C4 adapter to the Bronco Dana 20 is 7.375 in length. The adapter material is 356 T-6 heat treated aluminum alloy, and the adapter has a provision to retain the original early Bronco mount. The adapter kit includes an adapter housing, new C4 output shaft, new spud shaft, alignment retainer, snap ring, gaskets, seal, o-ring, vent, fastening hardware and adapter instructions.
Even though Ford used this transmission stock in vehicles from 1973-77, stock parts are no longer available. We manufacture a new aluminum adapter housing and a custom output shaft that is identical to the original Ford C4. This kit uses the stock Bronco spud shaft which may need to be shortened in some applications. No driveline modifications are required when replacing a manual 3 speed that was originally mated to a V8. The automatic shifter can be obtained from either 1973-77 Bronco, or a B & M cable-operated sport shifter can be used, PN715680.
Transfer Case
The adapter assembly will fit any 1966-77 Bronco Dana 20 transfer case. This cast iron, gear driven case with the front output shaft on the driver's side. This kit supplies a new 23 spline female spud shaft. The Bronco Dana 20 changed slightly during their service. 1966-72 models had a 2.46:1 low range and featured a "T" style shifter. 1973-77 models had a 2.38:1 low range and featured a "J" style shifter.
"J" LINKAGE TRANSFER CASE LINKAGE WILL NEED TO ORDER THE ADDITIONAL SPACER PN715515 OR MODIFY THE "J" LINKAGE
Transmission
The kit is designed for exclusive use with the Ford C4 automatic transmission. The Ford C4 is a 3 speed transmission was used between 1963-82. The transmission bellhousing is removable, the overall length measures 17.00".
Options
PN715680 B&M Sport Shifter. This is an idea and popular automatic transmission shifter kit.
Bill Of Materials
