AX15 TO 4CYL YJ NP231 TC EXTERNAL SLAVE

This kit is for all 4 cylinder Jeeps 1987 to 2002. The AX5 is considered a light duty transmission compared to the AX15. Jeeps equipped with larger tires and lower gears in the axle & transfer case may find the weak link in the drivetrain is the stock transmission. You can now install the AX15 in place of the AX5 to gain some drivetrain strength. The nice thing is that when you"™re ready to replace the 4 cylinder with a larger V6 or V8, the AX15 is an ideal transmission for the power increase.

These kits are for the retrofit of the AX15 transmission in place of the stock AX5 transmission in 4 cylinder equipped Jeep Wranglers. New custom front & rear drive shafts are required.

• This kit is for use when replacing the factory equipped AX5 5 speed manual transmission with the heavier duty AX15 5 speed. This kit comes with the parts necessary to make the change over as easy as possible. Please note that this option is for Wrangler vehicles 1994 that have the AX5 with the "External Style Slave Cylinder" and the stock NP231 transfer case.
• Kit includes:
• PN716054
• PN715545
• PN715545C
• PN716099A
• PN26-AX15
• PN712563

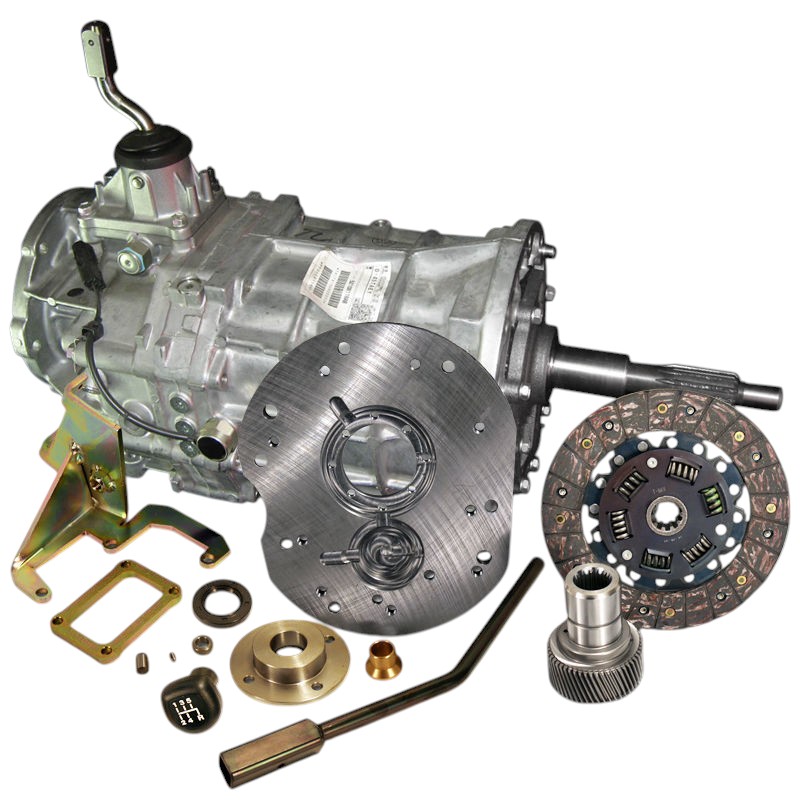

Bill Of Materials

• TRANSMISSION- AX15 4WD NEW UNIT .750 TIP (BOXED) / 26-AX15
• AX15 TO JEEP 4CYL B/H EXTERNAL / 712563
• NV3550/AX15 X NP T/C LINKAGE / 715545
• NP231-AX15/NV3500 LINKAGE ROD KIT / 715545C
• INPUT GEAR-NP231 23 SPLINE SHORT PRE 95 W/716325A / 716054
• SQUARE BASE AX15 & NV3550 SHFT HANDLE / 716099A
