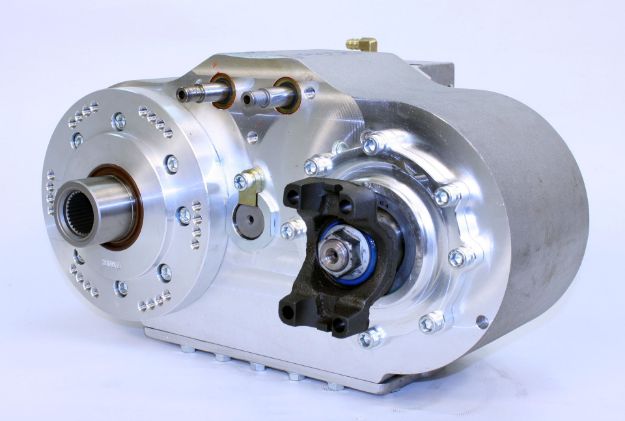

ATLAS JK 2007-11 MANUAL TRANS (T.S. RATIO & YOKES)

SKU: ATLAS-2SP-JK-M
Price: $2,605.99
excluding shipping
ATLAS JK 2007& Up MANUAL TRANS (RATIO AND YOKES)
Availability:
i h

The Advance Adapters Atlas gear-driven transfer cases are the ultimate in gearing and strength. With over 20,000 units sold, the Atlas 2 speed is the solution for combining both on and off-road performance.

The name is legendary and synonymous with rock crawling and off-road vehicle performance. Atlas Transfer Cases have won over the industry for their superior performance, bullet proof design and their ability to get you anywhere you want to go. The Atlas Transfer Case is sure to change the way your vehicle performs off-road. You will benefit greatly by understanding the Atlas characteristics and how to apply them for the ultimate in performance!

Don't sweat it, order in confidence knowing that after placing your order, you will be contacted by one of our technical specialists to nail down the specifics on your application before your order leaves the building. Shop online with confidence knowing you will get the correct transfer case, accessories & support to make your installation a positive experience from the start.

Application:

  • Jeep JK Wrangler 2007 & Up
  • Manual transmission
  • Included..........Transfer case, site tube, cable shifters, yokes, electronics, warranty, installation instructions & oil
  • Driveshafts...modifications required

Specifications:

  • Gears.............Helical cut
  • Case.......356-T6 Heat treated Aluminum
  • Weight.....110 lbs. (dry)
  • Bearings......Needle & taper rollers
  • Lubrication.....2.0 Quarts (2 liters)
  • Dimensions:
    • 1310 CV.....13.842"
    • Flange 1300.....12.224"
    • 1350 CV......14.027"

Gearing Options Available:

  • High range.....1:1
  • Low range......3.0:1 or 3.8:1 or 4.3:1 or 5.0:1

Features:

  • Universal case....Right or left drop
  • Bullet proof design
  • Fully synchronized
  • Shift-on-the-fly capability
  • Cable shifters
  • Twin Stick
  • 2WD high, 4WD high,
  • 2WD low (rear axle) - not available on a stock NP241 T/C
  • 2WD low (front axle, allows front dig) - feature not available on a stock NP241 T/C
  • 4WD low

Available Options:

  • Aluminum shift knobs
  • Installation kit which includes 2 Quarts of oil PNX11320



Bill Of Materials
