Advance Adapter
These sturdy weld-in engine mounts allow the installer to fine-tune the engine placement according to transmission placement or other needs. A double rubber cushion on each side provides vibration isolation at the ends of the two mounts. The rubber cushions are secured with a large 5/8" diameter bolt. The engine side mounts have slots in them so you can position the engine closer to one side of the frame.
frame widths 21.35" to 27.35"

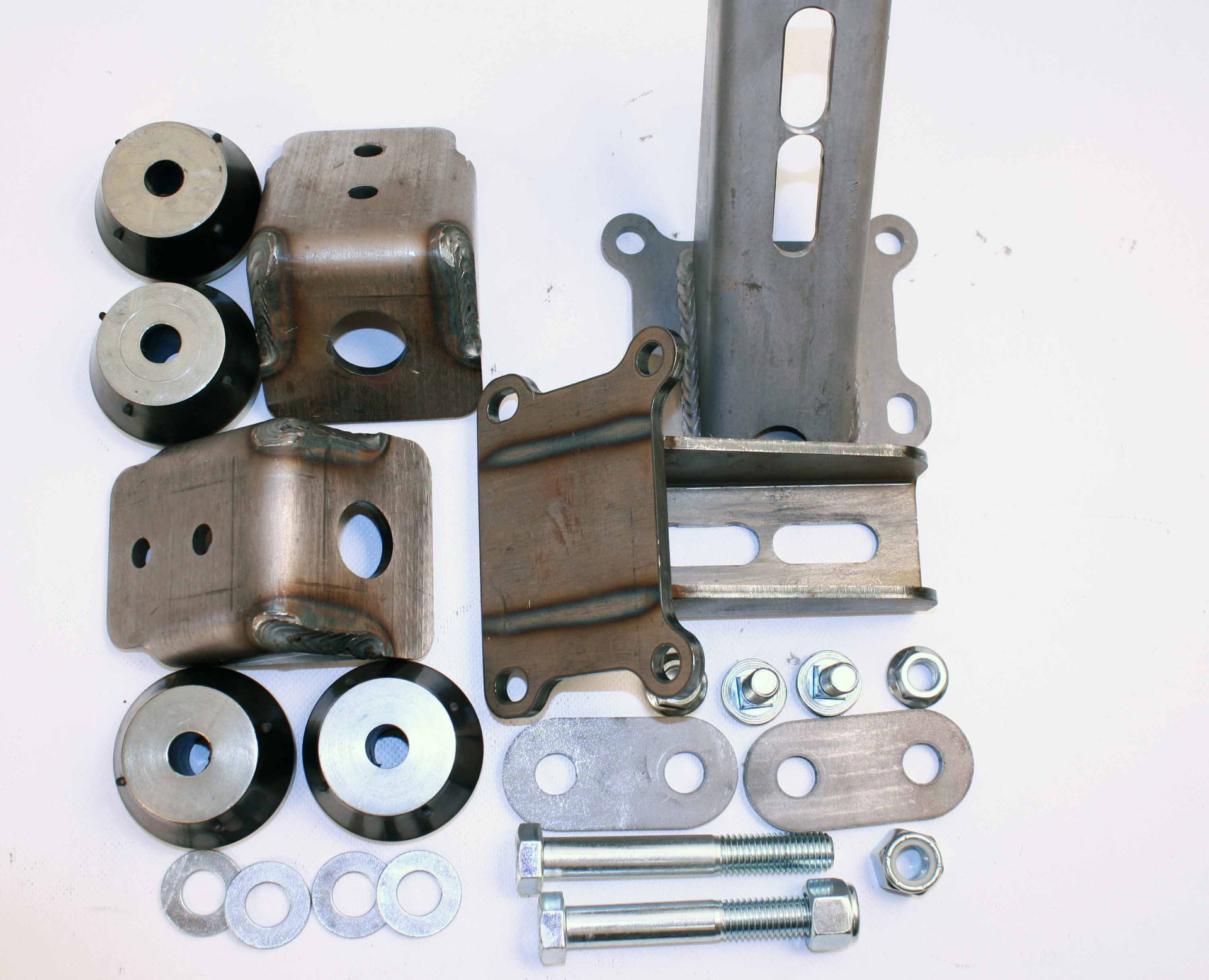

The engine mount kit includes two engine side mounts, two weld-in gusseted frame mounts, and rubber mount kit.
Note: These engine mounts fit the new Gen III / IV , LS-Series V8. The mounts have been designed to use with Truck exhaust manifolds or rear dump headers and will interfere with car (Corvette / Camaro / Trans-Am) exhaust manifolds.
Note: These engine / motor mounts are commonly used with Jeep CJ Models
Bill Of Materials
Products specifications
|
Engine
|
Chevy LS Series Gen III & IV |
|
Make
|
Jeep |
|
Model
|
CJ5 |
|
Model
|
CJ6 |
|
Model
|
CJ7 |
|
Model
|
CJ8 |
|
Make
|
International Harvester |
|
Model
|
Scout 80 |
|
Model
|
Scout 800 |
|
Model
|
Scout II |
|
Model
|
Wagoneer |
|
Model
|
Grand Wagoneer |
|
Model
|
Willys Wagon |
|
Model
|
Willys Truck |
|
Model
|
J Series |
|
Model
|
YJ Wrangler |
