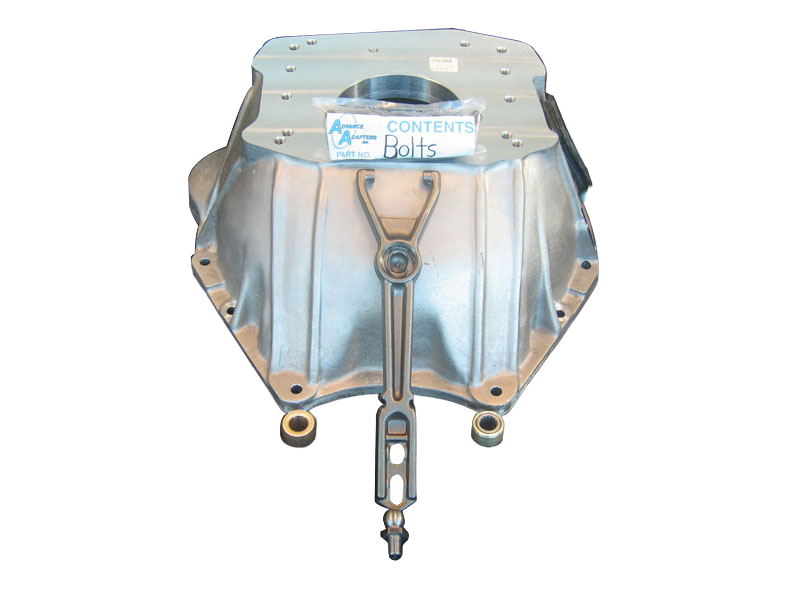

BUICK BELLHOUSING- 4.848 BORE

Advance Adapter

This adapter bellhousing assembly is used to adapt the Jeep "Dauntless" Buick 225 V6 to a Ford NP435, T18, T19 4 speed manual transmission in addition the bellhousing will fit the Jeep T18 with a short input.

Note: This bellhousing will can also be used with the Jeep series T4, T5 & T176 CJ7 series transmissions.

The bellhousing kit includes a 356 T-6 aluminum bellhousing, pilot bushing, throw-out arm, ball pivot, throw-out boot, fastening hardware, and adapter instructions.

The bellhousing can also be used on the Buick 231, and 3.8L (rear wheel drive) engines. The modernized and common 231 / 3.8L is a good candidate for replacing a blown 225.

Bill Of Materials

• BUSHING- PILOT .670 TIP GM CRANK / 716158
• BELL HOUSING- BUICK 4.848 JEEP/FORD / 712583-BLK
• BUSHING (STK. CHEVY) .590 / 716170
• BOLT 3/8 -16 X 1.25" SHCS ZNC / 723730
• BUICK BELLHOUSING BOOT / 716338
• LEVER- THROW-OUT CLUTCH GM / 716176
• BALL PIVOT-AA BELL HOUSING / 716180
• GM THROW-OUT LEVER SPRING CLIP / 716176SC
