BUICK BELLHOUSING- 4.687 BORE

SKU: 712581
$378.00
excluding shipping
Buick 225 or 231 V6 to the GM SM420 truck 4 speed, adapter bellhousing kit.
Availability:
i h
Digital Downloads

Advance Adapter

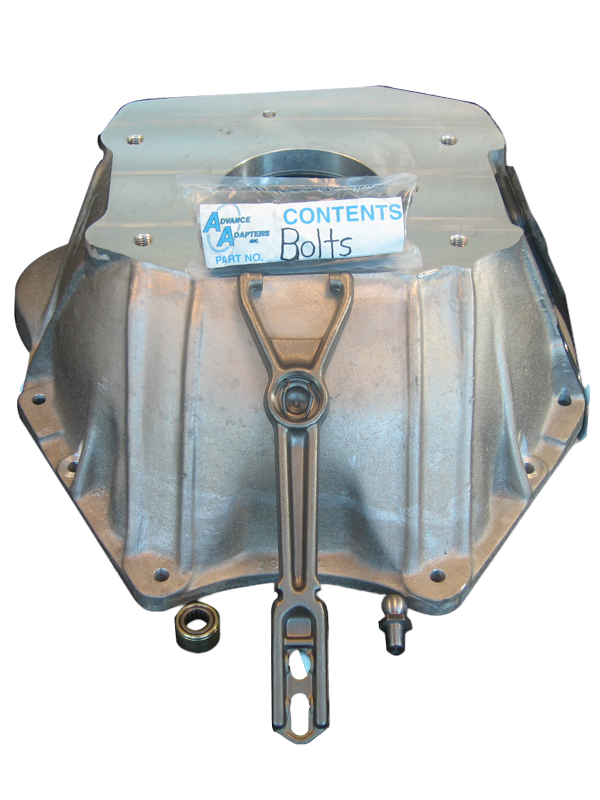

This adapter bellhousing assembly is used to adapt the Jeep "Dauntless" Buick 225 V6 to a GM SM420 4 speed manual transmission.

The bellhousing kit includes a 356 T-6 aluminum bellhousing, pilot bushing, throw-out arm, ball pivot, throw-out boot, fastening hardware, and adapter instructions.

The bellhousing can also be used on the Buick 231, and 3.8L (rear wheel drive) engines. The modernized and common 231 is a good candidate for replacing a blown 225.

Transmission

The kit is designed for exclusive use with the GM SM420 4 speed transmission. The SM420 was used in GM trucks 1947 to 1968 and has a 10 spline output shaft and was used in both 2wd and "divorced" 4wd applications. The large case iron case with a large bulge on the passenger side makes it easy to identify.

Note: Don't forget a new clutch cover, clutch disc and throw-out bearing. We have Centerforce clutch parts in stock and ready for your conversion!!!!

Options

PN716640 Jeep Chain Control Clutch Linkage

Bill Of Materials

Products specifications
Engine Buick 231 CID 3.8L V6
Transmissions Muncie SM420 Manual 2 Wheel Drive GM 1947-1968
*
*
*
