FORD S.B. V8 SIDE MOUNTS frame widths up to 28"

Advance Adapter

These sturdy weld-in engine mounts allow the installer to fine-tune the engine placement according to transmission placement or other needs. A double rubber cushion on each side provides vibration isolation at the ends of the two mounts. The rubber cushions are secured with a large 5/8” diameter bolt. The engine side mounts have holes in them so you can position the engine closer to one side of the frame.

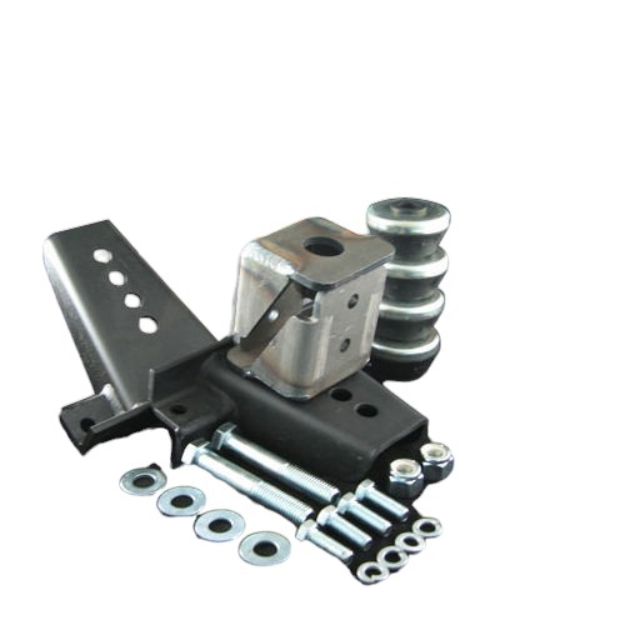

The engine mount kit includes two engine side mounts, two weld-in gusseted frame mounts, and rubber mount kit.

Note: 713002 is used with All Ford V8 small block 289, 302, 5.0L, & 351W.

For use with:

• 1941-1971 Jeep (MB, CJ2, CJ2A, VJ Jeepster, CJ3A, CJ3B, M38, M38A1, CJ5, CJ6 & Toyota Land Cruiser

Bill Of Materials

• LOCK WASHER 7/16 STD PLTD / 724303
• 7/16 -14 X 1-1/4 H.H.C.S. gr. 5 zinc / 724328
• FRAME MOUNT (CHEV & FORD) / 713045
• BOLT PACK FOR 713008-NS / 713008-B
• MOUNT- MOTOR FORD LONG / 713041
• MOUNT- MOTOR FORD SHORT / 713042
• MOUNT- RUBBER FOR 713008-NS / 716656
