GM TRANS TO FORD 302 NO FLEXPLATE

Advance Adapter

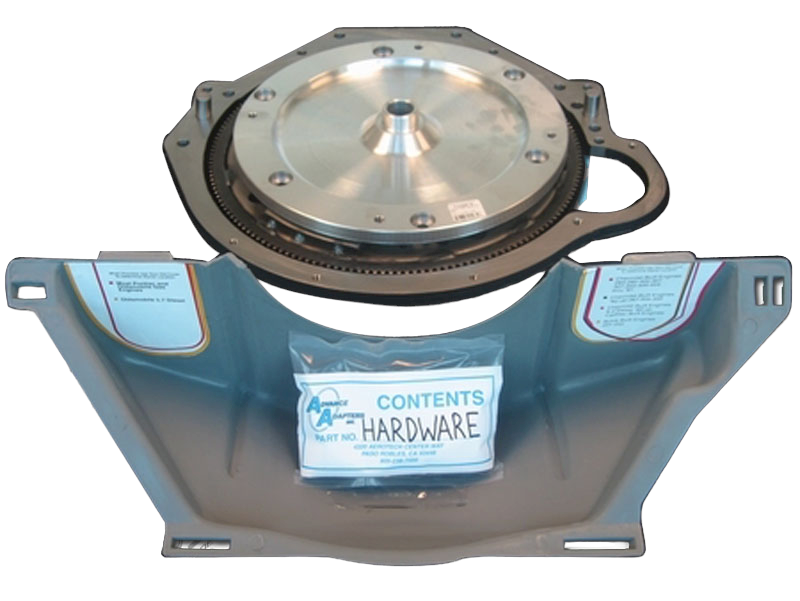

This adapter plate assembly is used to adapt a Ford small block 302 / 5.0L to the GM TH350, TH400, and 700R4 automatic transmissions. The adapter kit includes a steel adapter plate, plastic dust cover, torque converter adapter ring, GM dowel pins, fastening hardware, and adapter instructions. Note: This kit does not include a flexplate and requires a 164th flexplate of your choice.

This adapter was mainly designed to fit the popular 700R up to the Ford small block. The 700R has the lowest first gear available in an automatic transmission, which makes this combination a sought-after transmission replacement for rock crawling enthusiasts.

Note: The torque converter adapter ring only fits 10-3/4" GM torque converter pattern.

Note: Adapter kit does not fit 1997 & up 4L60E / 4L65E or any late model GM 6 speed automatics.

Bill Of Materials

• FLANGED NUT 3/8 -24 SERRATED PLATED / 302071
• GM DUST COVER TO FORD MOTOR / 712588-D
• ADAPTER GM TRANS TO FORD SM BL / 712588-PLT
• ADAPTER- GM TQ CONV TO FORD OR IH / 712588-R
• GM ENGINE DOWEL PIN / 716123
• 10mm FLAT WASHER / 720015
• M10-1.5 X 16mm 10.9 FLANGED BOLT / 720049
• H.H.C.S. 3/8 -16 X 3/4 GRD8 plated / 723758
• 3/8 -24 X 1.656 KNURLED STUD BOLT / 723764
• F.H.C.S. 7/16 -14 X 1-1/4 plain / 724322
