TOY TRK R150F/R151F X GM V6/V8

Advance Adapter This kit is designed to fit the GM block with a 153T flywheel

This adapter bellhousing assembly is used to adapt the GM 4.3, 350 V8 to the 1986-95 Toyota Truck 5 speed manual. These transmissions are identified as R150F and R151F The 5 speeds were used in the 4cyl turbo trucks and the 3.0 V6 trucks.

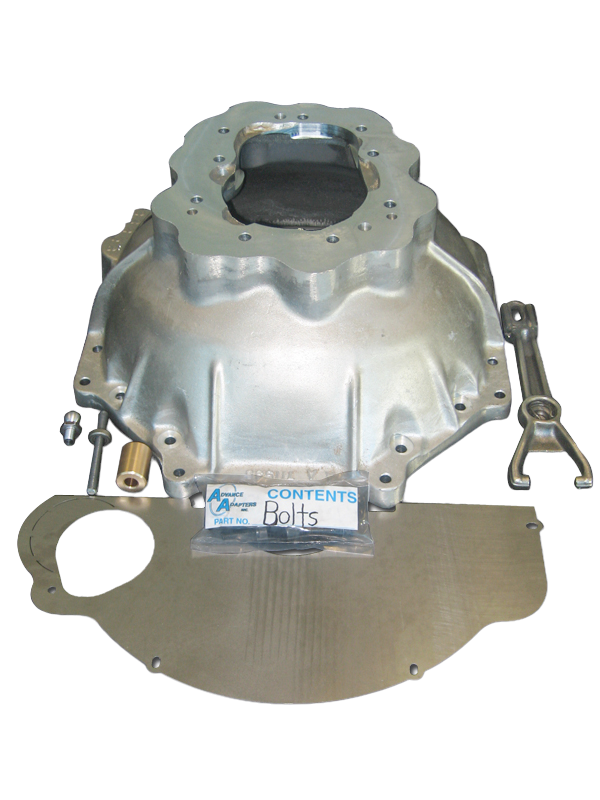

The bellhousing kit includes a 356 T-6 aluminum bellhousing, universal dust cover plate, pilot bushing, throw-out arm, slave cylinder push rod, slave cylinder push rod end, ball pivot, fastening hardware, and adapter instructions.

Note: Late model 4.3 V6 with an aluminum oil pan must use a 168th flywheel (CF700160) and will require starter 22-0001. Please use kit 712561V.

Note: This kit is not intended for use with any LS engine.

Note: Bellhousing fits Toyota Truck only and is not intended for Supra / Celica car conversions.

Required Clutch Options

P/N 716213 Slave Cylinder

P/N 716105 10.5” Clutch Disc

P/N N1430 Throw-Out Bearing

P/N CF360056 10.5” Pressure Plate

Bill Of Materials

• BELLHOUSING- TOY TRK 5SP /V8 (2539) / 712561-BLK
• DUST SHIELD- GM BELL HSG / 712567-PLT
• SLAVE CYLINDER SPACER 2560'S / 716019
• BUSHING- CRANKSHAFT GM TO TOYOTA EXTENDED / 716149-NS
• GM THROW-OUT LEVER SPRING CLIP / 716176SC
• THROW OUT ARM- TOY P/U TO GM VORTEC / 716179V
• BALL PIVOT-AA BELL HOUSING / 716180
• ROD- SLAVE CYL 3/8-24 x 5" / 716343
• SPHERICAL BALL FOR PUSH ROD / 716635-A
• 712560 KIT BOLT PACK / 714210
