Transfer Case
The adapter assembly fits the Toyota Truck 23 spline gear driven transfer cases. This transfer case has a male 23 spline input shaft and can also be identified by 7 bolts attaching the tailhousing to the transfer case.
Transmission
In 1996, GM produced a newer version of its electronically controlled 4L60E. This 4L60E transmission is 21-1/2" long, and has a removable bellhousing. It has a hex bolt pattern on the output side of the transmission, similar to a TH400.

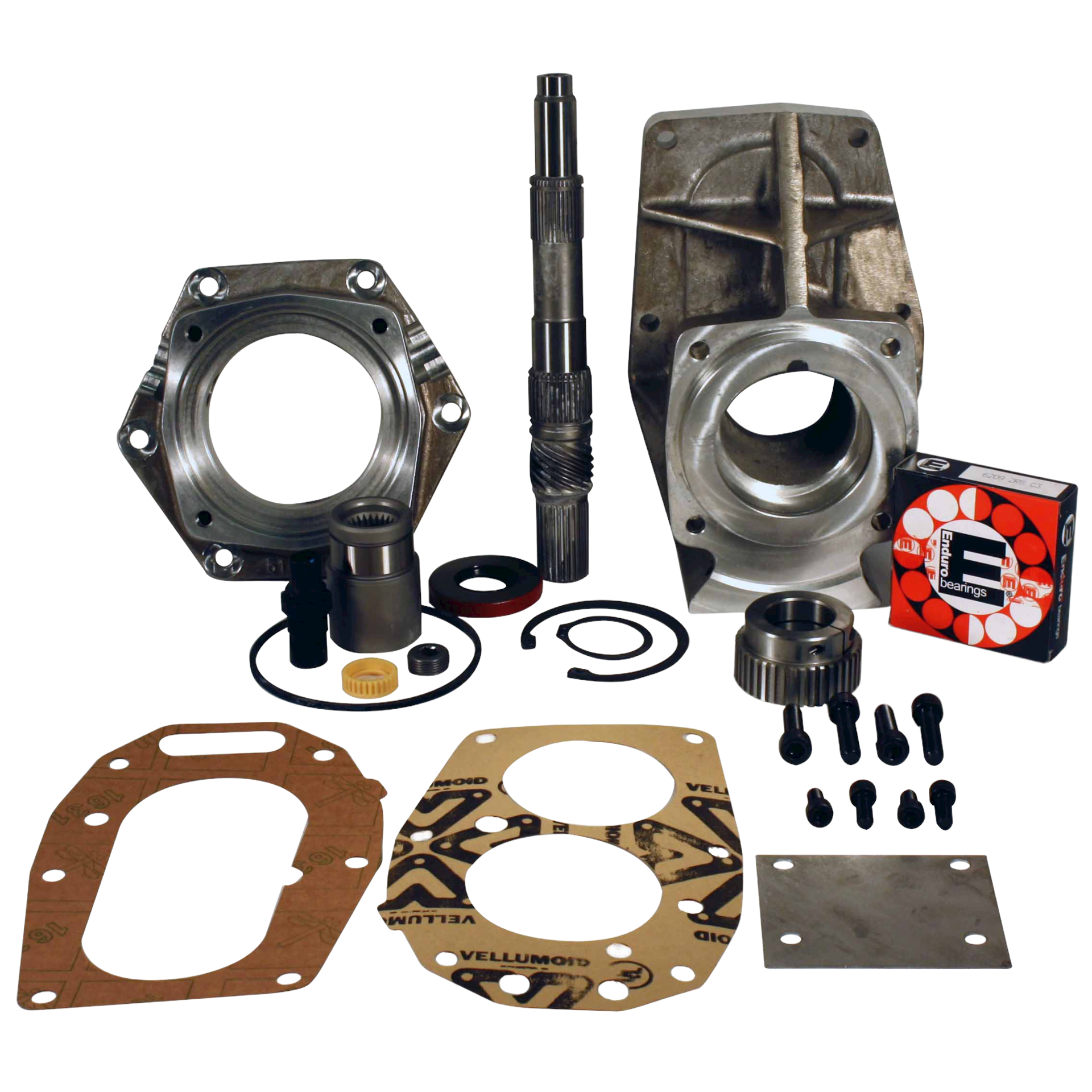

The 51-0405 adapter was designed to make this style of 4L60E look just like a 700R. By incorporating a new clampon reluctor ring and sensor on this adapter, a 40 pulse per output shaft revolution signal is generated for the drivetrain control module. This adapter comes with a new clamp-on reluctor ring that should be installed on the new 700R output shaft that you have had installed in your transmission. This clamp-on reluctor ring clamps over the stock governor gear on the 700R output shaft. We have provided two reluctor sensor locations to choose from in the adapter. The hole not being used will need to be plugged with the plug provided.
The one piece GM 700R4 output shaft used in this kit is made out of 4340 alloy steel. This output shaft is manufactured with the highest quality materials and standards as the OEM output shaft.
This main shaft kit can also be used with the 4L60 and 4L60E overdrive automatic transmissions.
Bill Of Materials
Products specifications
|
Transfer Cases
|
Toyota Truck RF1A (23 Spline Input) |
|
Transmissions
|
GM 4L60E (M30) Automatic 2 Wheel Drive GM 1996-2006 |
|
Transmissions
|
GM 4L60E (M30) Automatic 4 Wheel Drive GM 1996-2006 |
|
Transmissions
|
GM 4L65E/4L70 (M32) Automatic 2 Wheel Drive GM 2001-2006 |
|
Transmissions
|
GM 4L65E/4L70(M32) Automatic 4 Wheel Drive GM 2001-2006 |
