Advance Adapter

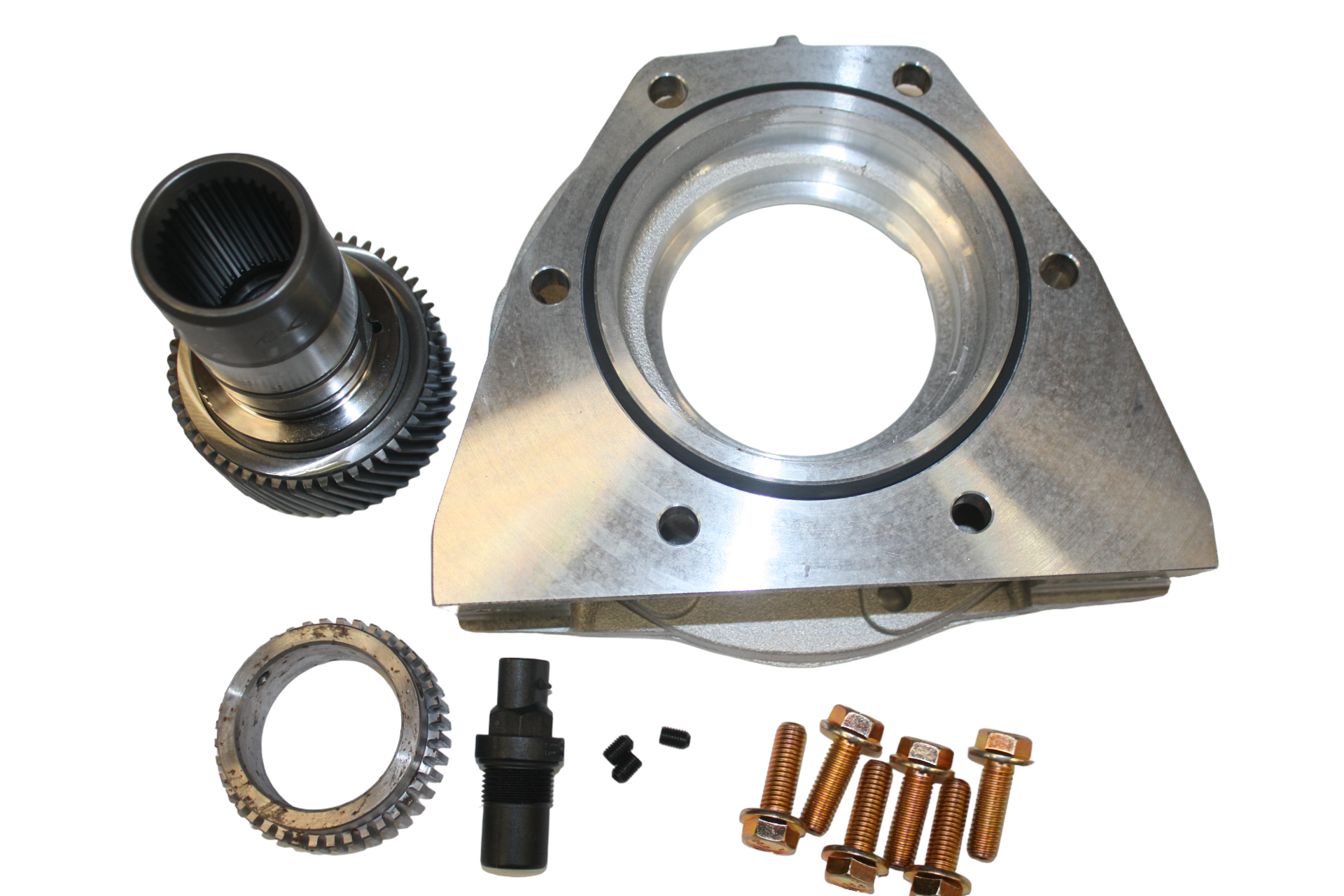

The GM 4L80E adapter to the Jeep NP241 is 2.75" in length. Adapter material is 356 T-6 heat treated aluminum alloy. The adapter has a provision for a transmission mount. The adapter kit includes an adapter housing, new NP241 input with 32 spline, reluctor ring, sensor, and fastening hardware and adapter instructions.
Transfer Case
The adapter assembly will fit any Jeep JK 241 with the 2.72:1 low ratio.
Transmission
The adapter kit is designed for the GM 4L80E 4WD or the 4L80E with the 6-1/2” slip yoke output shaft.
Bill Of Materials
Products specifications
|
Transmissions
|
GM 4L80E (MT1) Automatic 4 Wheel Drive GM 1991-2006 |
|
Transfer Cases
|
Jeep New Process 241 (23 Spline) |
