Advance Adapter
This kit has a reluctor ring that fits our Advance Adapters or stock 700R output shaft, if you are using a stock GM 4L60E shaft then you need to use kit 50-0405E.

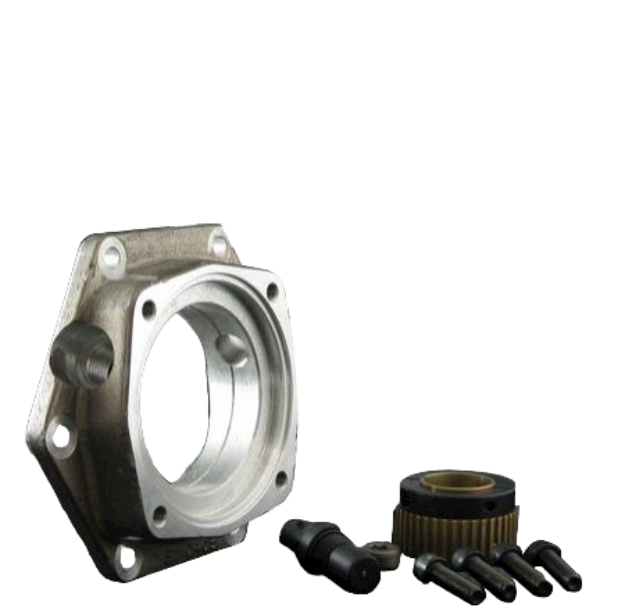

This kit was designed to adapt the late model 4L60E hex bolt pattern to any 700R adapter that Advance Adapters manufactures. The adapter length is 1.50" and when bolted on to the 4L60E, the overall length of the transmission is 23.375". Adapter material is 356 T-6 heat treated aluminum alloy. The adapter kit includes an adapter housing, GM VSS sensor, clamp-on reluctor ring, fastening hardware and adapter instructions.
Transmission
The adapter kit is designed for exclusive use with a late model 4L60E with a removable bellhousing.
For more information on VSS (click here)
Bill Of Materials
Products specifications
|
Transmissions
|
GM 4L60E (M30) Automatic 2 Wheel Drive GM 1996-2006 |
|
Transmissions
|
GM 4L60E (M30) Automatic 4 Wheel Drive GM 1996-2006 |
|
Transmissions
|
GM 4L65E/4L70 (M32) Automatic 2 Wheel Drive GM 2001-2006 |
|
Transmissions
|
GM 4L65E/4L70(M32) Automatic 4 Wheel Drive GM 2001-2006 |
